SKU: 6301-2NSE-NACHI
NACHI 63012NSE Contact Rubber Sealed Deep Groove Ball Bearing 12x37x12mm
- Regular price
- €7,41 ex VAT
- Sale price
- €7,41
- Regular price
-
In stock
Quantity Price Breaks
5
€6,59
9
€6,22
19
€6,15
29
€6,08
49
€6,00
74
€5,93
99
€5,56
199
€5,48
249
€5,41
499
€5,34
999
€5,19
SKU:
6301-2NSE-NACHI
NACHI 63012NSE Contact Rubber Sealed Deep Groove Ball Bearing 12x37x12mm
- Regular price
- €7,41 ex VAT
- Sale price
- €7,41
- Regular price
-
Description
|
NACHI Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with inner ring. Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water. |

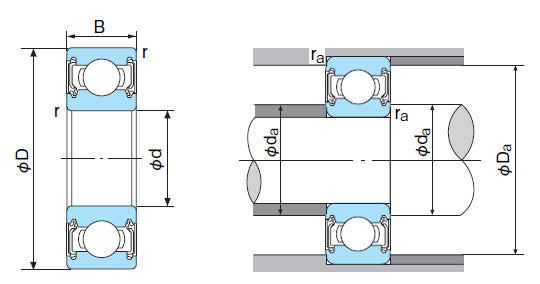

Technical
| Inside Diameter d | = | 12mm |
| Outside Diameter D | = | 37mm |
| Width B | = | 12mm |
| Min radius r | = | 1mm |
| Dynamic load | = | 9750 kN |
| Static load | = | 4250 kN |
| Max speed | = | 20000 rpm |
| da min | = | 18mm |
| Da max | = | 31mm |
| ra max | = | 1mm |
| Weight | = | 0.06 kg |
