SKU: 6300ZZC3/5K-NTN

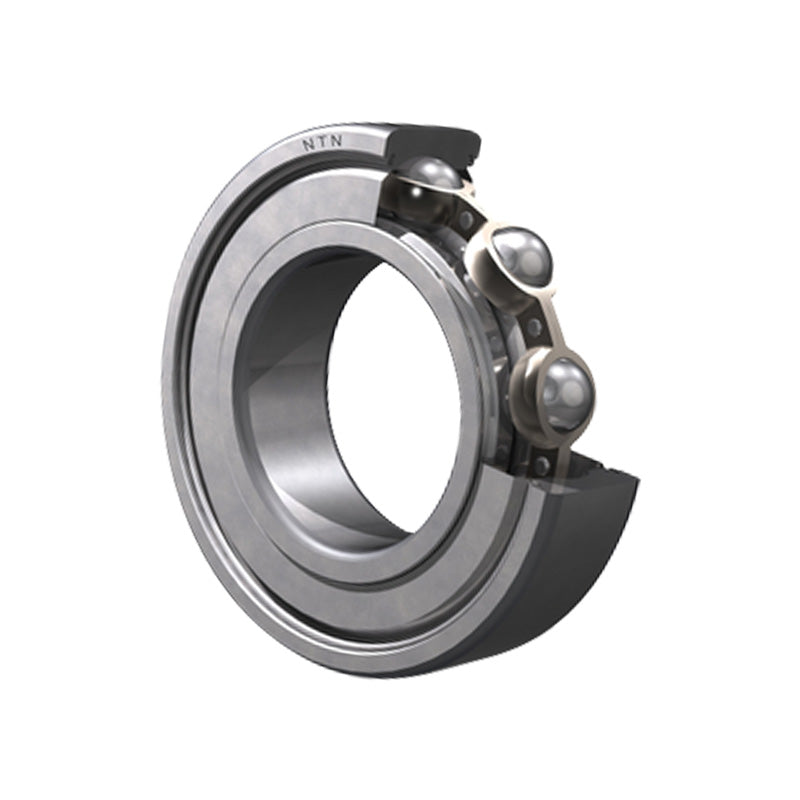

NTN 6300ZZC3/5K Metal Shielded Type Deep Groove Ball Bearing 10x35x11mm
Equivalent to: 6300ZZC3 63002ZC3 6300ZZC3 63002ZRC3 6300ZZEC3 6300FFC3 6300DDC3 6300DDCC3 6300KDDCC3 EL102ZC3 EL10ZZC3 9100KDDC3 9100FFC3 100KSFFC3 773L00C3 6100PPC3
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 35mm
- Width:
- 11mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
| --- | Bearing dimensions |
|---|---|
| d | 10mm |
| D | 35mm |
| B | 11mm |
| r<sub>s</sub> min | 0.6mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 9.1 kN |
| C<sub>or</sub> | 3.5 kN |
| C<sub>u</sub> | 0.273 kN |
| f<sub>0</sub> | 11.4 kN |
| Grease | 23000 rpm |
| Oil | 27000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 14mm |
| d<sub>a</sub> Max. | 17mm |
| D<sub>a</sub> Max. | 31mm |
| r<sub>as</sub> Max. | 0.6mm |
| Weight | 0.053 kg |
