SKU: 6300-ZZ-CDX

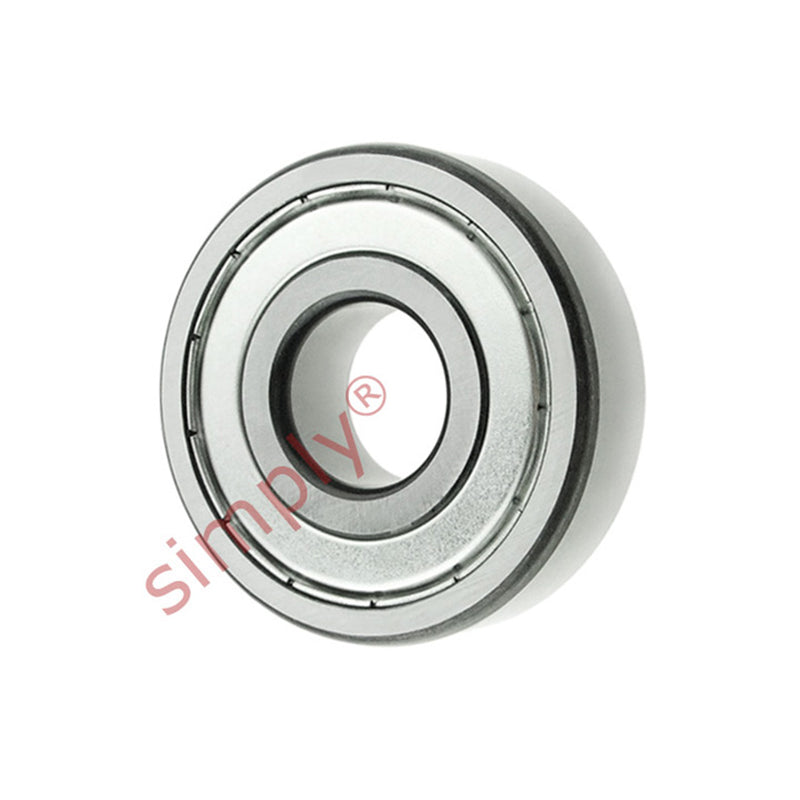

Codex 6300ZZ Metal Shielded Deep Groove Ball Bearing 10x35x11mm
- Regular price
- €5,13 ex VAT
- Sale price
- €5,13
- Regular price
-
In stock
Quantity Price Breaks
4
€4,57
10
€4,31
20
€4,26
30
€4,21
50
€4,16
75
€4,10
100
€3,85
200
€3,80
250
€3,74
500
€3,69
1000
€3,59
SKU:
6300-ZZ-CDX
Codex 6300ZZ Metal Shielded Deep Groove Ball Bearing 10x35x11mm
- Regular price
- €5,13 ex VAT
- Sale price
- €5,13
- Regular price
-
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Technical
| d | = | 10mm |
| D | = | 35mm |
| B | = | 11mm |
| Dynamic load C | = | 8.52 kN |
| Static load Co | = | 3.4 kN |
| Fatigue load limit Pu | = | 0.143 |
| Reference speed | = | 50000 rpm |
| Limiting speed | = | 26000 rpm |
| Weight | = | 0.053 kg |
| d2 | = | 15.7mm |
| D2 | = | 28.7mm |
| r1r2 min | = | 0.6mm |
| da min | = | 14.2mm |
| da max | = | 15.5mm |
| Da max | = | 30.8mm |
| ra max | = | 0.6 |
| Calc factor kr | = | 0.03 |
| Calc factor Cor f0 | = | 11 |
