SKU: 6224LLU/2AS-NTN

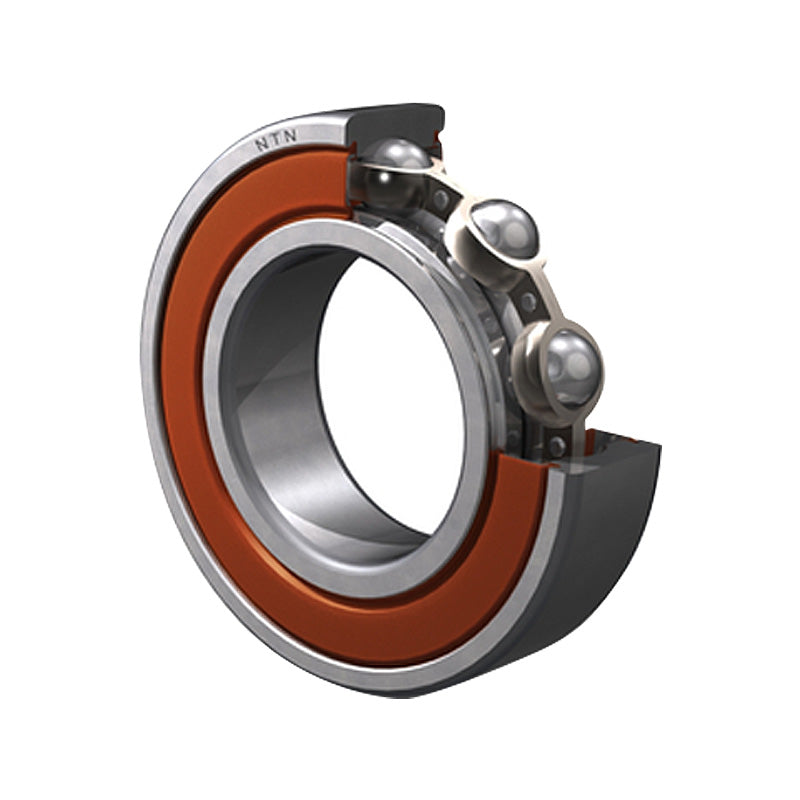

NTN 6224LLU/2AS Contact Rubber Sealed Type Deep Groove Ball Bearing 120x215x40mm
Equivalent to: 6224LLUCM 6224LLU 6224NSE 6224DU 6224RS 6224RSH 6224P 6224RSR 6224LU 62242NSE 6224DDU 62242RS 6224-2RS 62242RS1 62242RSH 6224PP 62242RSR 6224LLU 6224RS2 62242RS2 62242RSL 6224LFS 6224EE 1224R 224SZ 224K 224P Z9524
In stock
Price Break
Couldn't load pickup availability
Description
Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of its simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with the inner ring.
Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water.
Note: These bearings are supplied pre-filled with grease, "/2AS" refers to Shell Alvania Grease S2
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 120mm
- Outside Diameter:
- 215mm
- Width:
- 40mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
| --- | Bearing dimensions |
|---|---|
| d | 120mm |
| D | 215mm |
| B | 40mm |
| r<sub>s</sub> min | 2.1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 172 kN |
| C<sub>or</sub> | 131 kN |
| C<sub>u</sub> | 7.95 kN |
| f<sub>0</sub> | 14.4 kN |
| Speed | 2000 rpm |

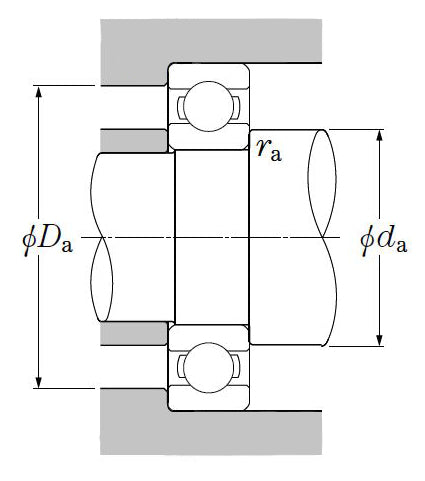

| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 131mm |
| d<sub>a</sub> Max. | 143mm |
| D<sub>a</sub> Max. | 204mm |
| r<sub>as</sub> Max. | 2mm |
| Weight Kg | 5.15 kg |
