SKU: 6205NR/C3-MB

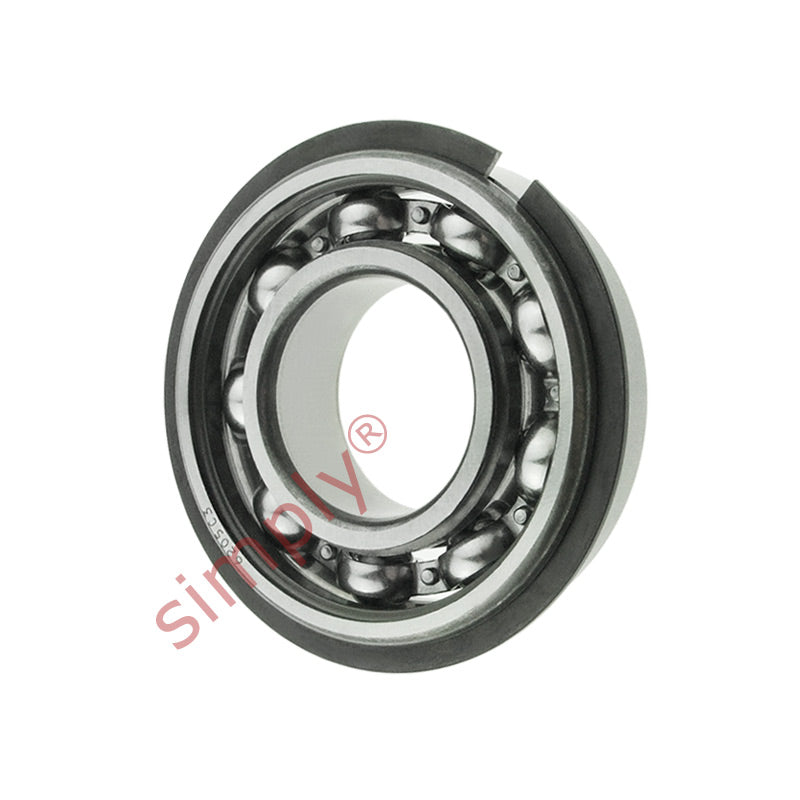

6205NRC3 Deep Groove Ball Bearing with Snap Ring 25x52x15mm
6205NRC3 Deep Groove Ball Bearing with Snap Ring 25x52x15mm
Regular price
€16,93
ex VAT
Regular price
Sale price
€16,93
ex VAT
In stock
Price Break
10+
€12,87
19+
€12,15
29+
€12,00
39+
€11,86
49+
€11,71
74+
€11,57
99+
€10,84
199+
€10,70
249+
€10,55
499+
€10,41
999+
€10,12
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 52mm
- Width:
- 15mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 25mm |
|---|---|
| D | 52mm |
| B | 15mm |
| Dyamic load C | 14.8 kN |
| Static load Co | 7.8 kN |
| Fatigue load limit Pu | 0.335 kN |
| Reference speed | 28000 rpm |
| Limiting speed | 18000 rpm |
| Mass | 0.13 kg |
| d1 | 34.4mm |
| d2 | 44mm |
| D2 | 46.3mm |
| r1r2 min | 1mm |
| da min | 30.6 |
