SKU: 6205NR/C3-FAG

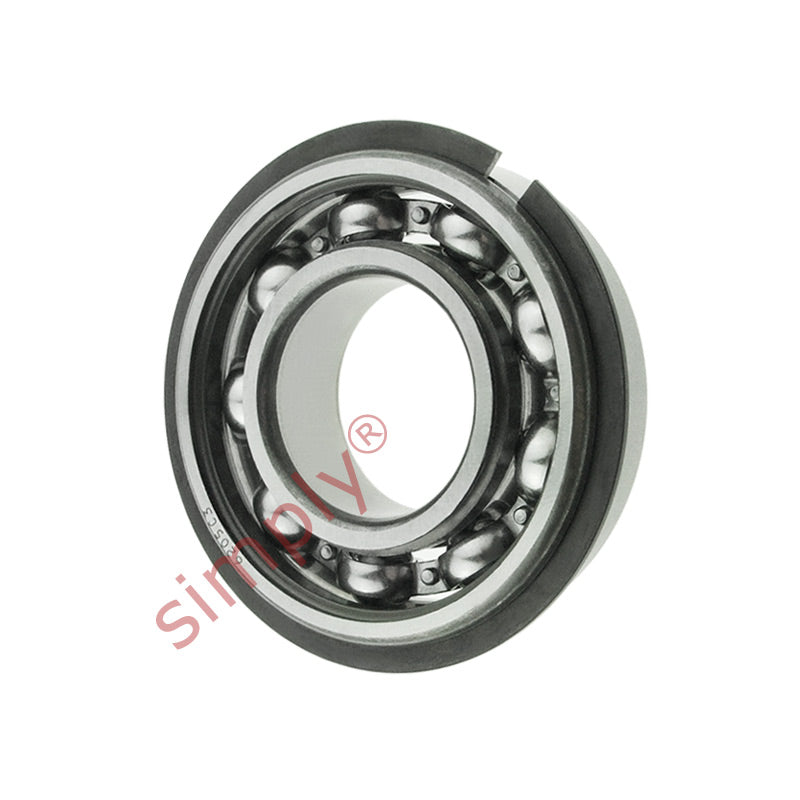

6205NRC3 Deep Groove Ball Bearing with Snap Ring 25x52x15mm
- Regular price
- €18,73 ex VAT
- Sale price
- €18,73
- Regular price
-
Not in stock
Quantity Price Breaks
10
€16,67
19
€15,73
29
€15,55
39
€15,36
49
€15,17
74
€14,98
99
€14,05
199
€13,86
249
€13,67
499
€13,49
999
€13,11
SKU:
6205NR/C3-FAG
6205NRC3 Deep Groove Ball Bearing with Snap Ring 25x52x15mm
- Regular price
- €18,73 ex VAT
- Sale price
- €18,73
- Regular price
-
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
Technical
| d | = | 25mm |
| D | = | 52mm |
| B | = | 15mm |
| Dyamic load C | = | 14.8 kN |
| Static load Co | = | 7.8 kN |
| Fatigue load limit Pu | = | 0.335 kN |
| Reference speed | = | 28000 rpm |
| Limiting speed | = | 18000 rpm |
| Mass | = | 0.13 kg |
| d1 | = | 34.4mm |
| d2 | = | 44mm |
| D2 | = | 46.3mm |
| r1r2 min | = | 1mm |
| da min | = | 30.6 |
