SKU: 62/28NR-MB

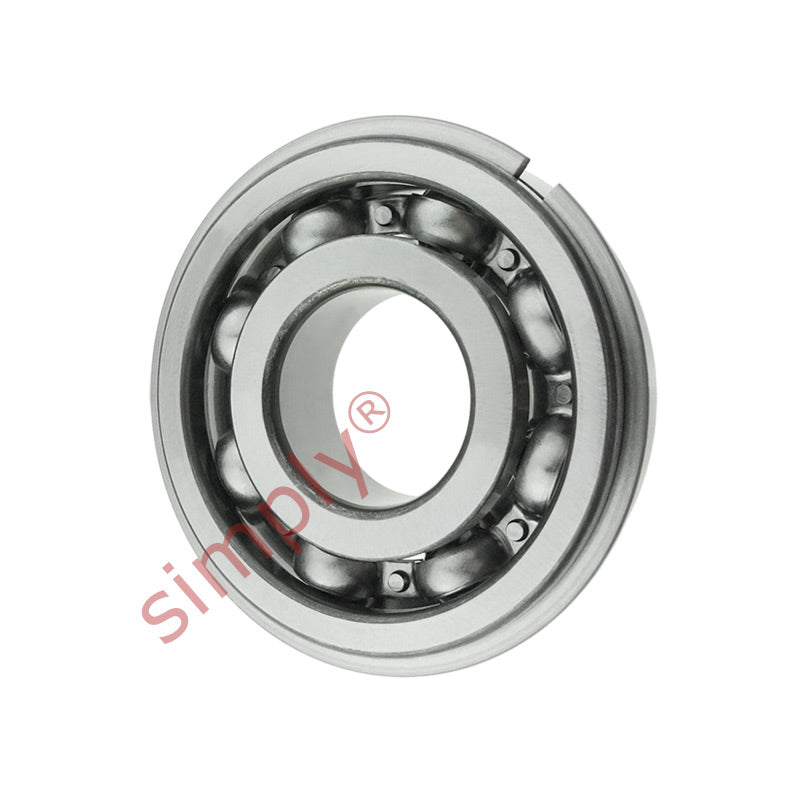

62/28NR Major Branded Deep Groove Ball Bearing with Snap Ring 28x58x16mm
- Regular price
- €18,99 ex VAT
- Sale price
- €18,99
- Regular price
-
Not in stock
Quantity Price Breaks
10
€16,90
19
€15,95
29
€15,76
39
€15,57
49
€15,38
74
€15,19
99
€14,24
199
€14,05
249
€13,86
499
€13,67
999
€13,29
SKU:
62/28NR-MB
62/28NR Major Branded Deep Groove Ball Bearing with Snap Ring 28x58x16mm
- Regular price
- €18,99 ex VAT
- Sale price
- €18,99
- Regular price
-
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
Technical
| d | = | 28mm |
| D | = | 58mm |
| B | = | 16mm |
| Dyamic load C | = | 16.8 kN |
| Static load Co | = | 9.5 kN |
| Fatigue load limit Pu | = | 0.405 kN |
| Reference speed | = | 260000 rpm |
| Limiting speed | = | 16000 rpm |
| Mass | = | 0.18 kg |
| d1 | = | 37mm |
| d2 | = | 49.2mm |
| D2 | = | 54.2mm |
| r1r2 min | = | 1mm |
| da min | = | 33.6 |
