SKU: 61908-2Z/C3-MB

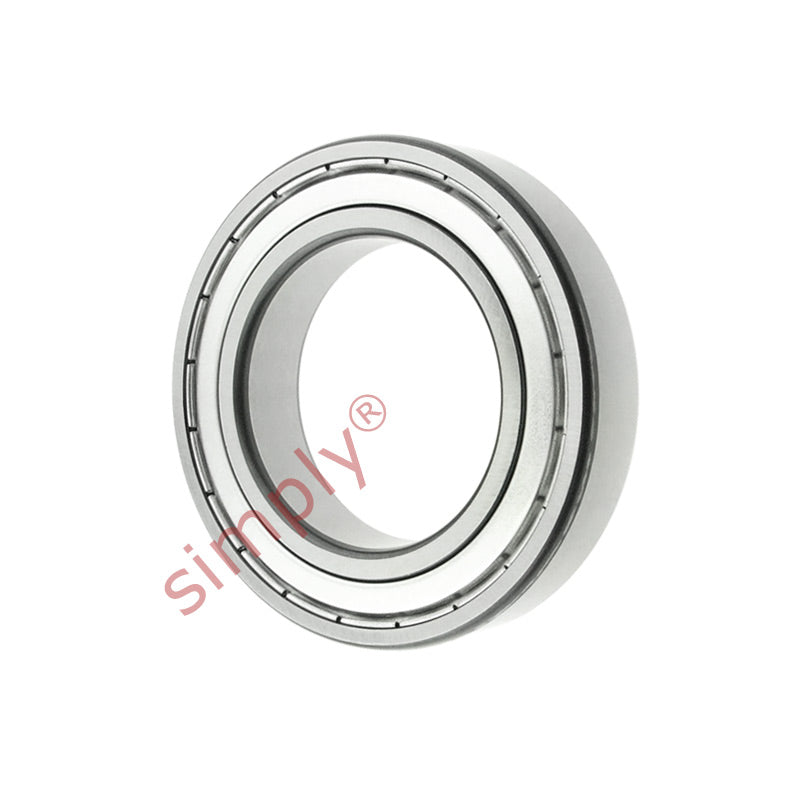

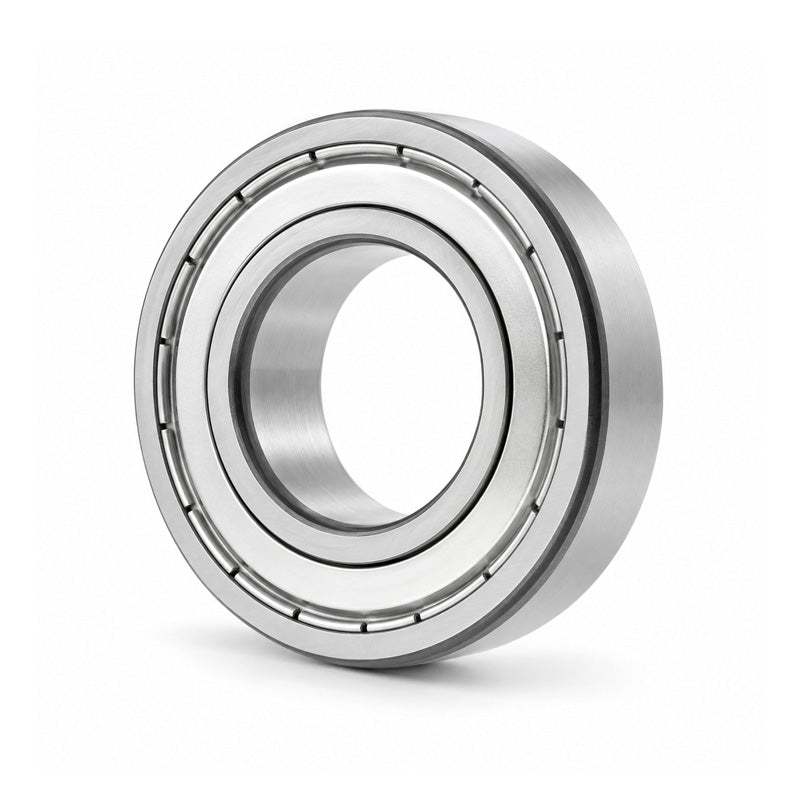

Major Branded 619082ZC3 Metal Shielded Thin Section Deep Groove Ball Bearing 40x62x12mm
Equivalent to: 61908ZZEC3 61908ZZC3 61908.2ZC3 61908KDDC3 61908DDC3 619082ZRC3 61908FFC3 6908ZZEC3 6908ZZC3 69082ZC3 6908.2ZC3 6908KDDC3 6908DDC3 69082ZRC3 6908FFC3
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 62mm
- Width:
- 12mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
| d | 40mm |
|---|---|
| D | 62mm |
| B | 12mm |
| Dynamic load C | 13.8 kN |
| Static load Co | 10 kN |
| Fatigue load limit Pu | 0.425 kN |
| Reference speed | 24000 rpm |
| Limiting speed | 6700 rpm |
| Mass | 0.12 kg |
| d1 | 46.9mm |
| D2 | 57.3mm |
| r1r2 min | 0.6mm |
| da min | 43.2 |
