SKU: 61902TN-MB

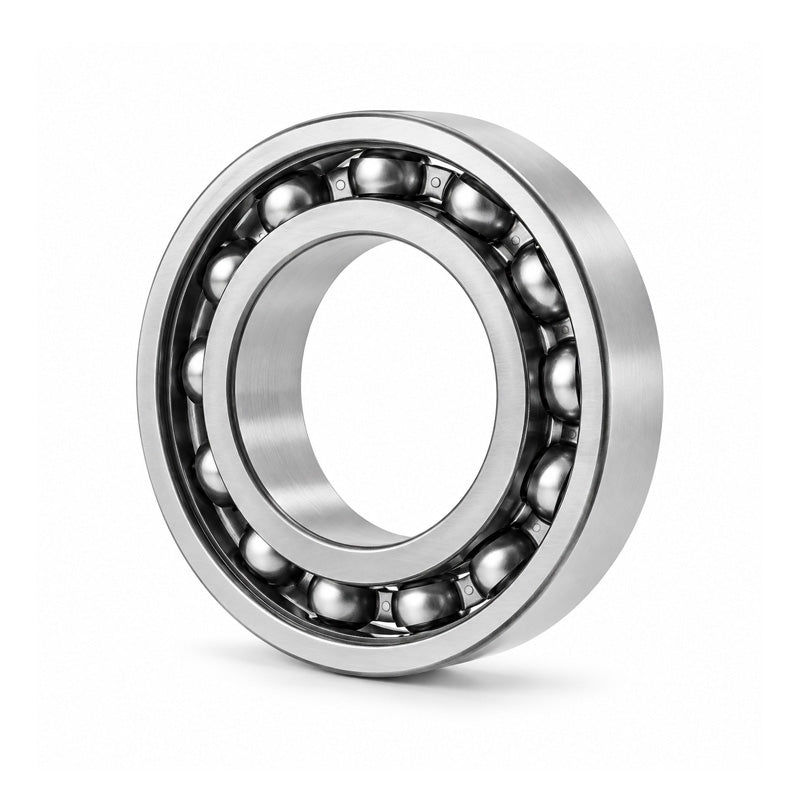

Major Branded 61902TN Open Thin Section Deep Groove Ball Bearing 15x28x7mm
Major Branded 61902TN Open Thin Section Deep Groove Ball Bearing 15x28x7mm
Regular price
€17,31
ex VAT
Regular price
Sale price
€17,31
ex VAT
In stock
Price Break
10+
€13,15
19+
€12,42
29+
€12,27
39+
€12,12
49+
€11,97
74+
€11,82
99+
€11,08
199+
€10,94
249+
€10,79
499+
€10,64
999+
€10,35
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 28mm
- Width:
- 7mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 15mm |
|---|---|
| D | 28mm |
| B | 7mm |
| Dynamic load C | 4.36 kN |
| Static load Co | 2.24 kN |
| Fatigue load limit Pu | 0.095 kN |
| Reference speed | 56000 rpm |
| Limiting speed | 34000 rpm |
| Mass | 0.016 kg |
| d1 | 18.4mm |
| D1 | 24.7mm |
| D2 | 25.8mm |
| r1r2 min | 0.3mm |
| da min | 17mm |
| Da max | 26mm |
| ra max | 0.3mm |
| Calc factor Kr | 0.02 |
| Calc factor | 14 |
