SKU: 6014-2Z-HT-330
6014ZZHT330 High Temp 330C Shielded Deep Groove Ball Bearing 70x110x20mm Max 68rpm
- Regular price
- €48,72 ex VAT
- Sale price
- €48,72
- Regular price
-
Not in stock
Quantity Price Breaks
3
€43,36
5
€40,92
10
€40,44
15
€39,95
20
€39,46
30
€38,98
40
€36,54
50
€36,05
60
€35,57
75
€35,08
100
€34,10
SKU:
6014-2Z-HT-330
6014ZZHT330 High Temp 330C Shielded Deep Groove Ball Bearing 70x110x20mm Max 68rpm
- Regular price
- €48,72 ex VAT
- Sale price
- €48,72
- Regular price
-
Description

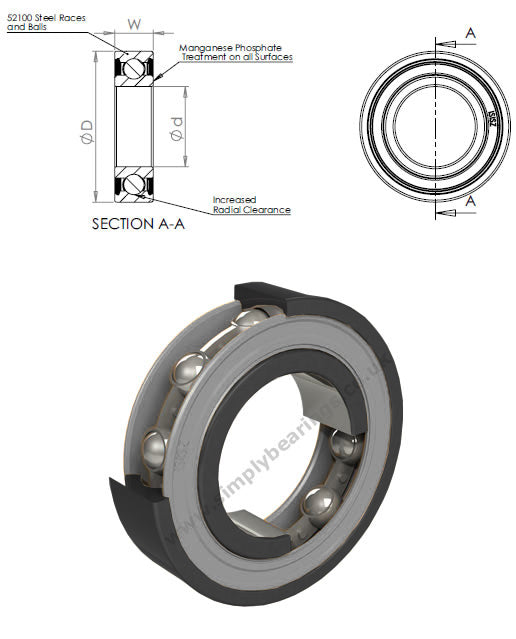

HT330 Series High Temperature Bearings: Manufactured with a steel cage to further enhance the bearings performance, supplied metal shielded are designed for high temperatures up to + 330 degrees Celsius and down to - 30 degrees Celsius. At temperatures over + 200 dry lubrication pertains. Designed for low speeds at temperature without maintenance. Internal clearance is C5+ and all have a BLACK PHOSPHATE COATING
Benefits: High temperature resilience, low maintenance
Technical
| Inside diameter d | = | 70mm |
| Outside diameter D | = | 110mm |
| Width W | = | 20mm |
| Static load max | = | 18.21 kN |
| Max operating temperature | = | 330 deg Celcius |
| Maximum speed | = | 68 rpm |
| Weight | = | 600 g |
