SKU: 6001/C3-NACHI
NACHI 6001C3 Open Deep Groove Ball Bearing 12x28x8mm
- Regular price
- €4,46 ex VAT
- Sale price
- €4,46
- Regular price
-
In stock
Quantity Price Breaks
5
€3,97
9
€3,75
19
€3,70
29
€3,66
49
€3,61
74
€3,57
99
€3,35
199
€3,30
249
€3,26
499
€3,21
999
€3,12
SKU:
6001/C3-NACHI
NACHI 6001C3 Open Deep Groove Ball Bearing 12x28x8mm
- Regular price
- €4,46 ex VAT
- Sale price
- €4,46
- Regular price
-
Description
|
NACHI Open Type Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This type of bearing consists of inner and outer rings, balls and a cage. Benefits: High-running accuracy and high-speed operation. |

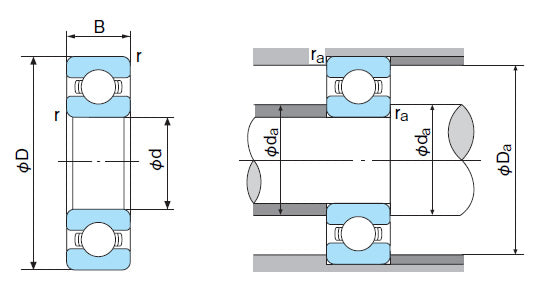

Technical
| Inside Diameter d | = | 12mm |
| Outside Diameter D | = | 28mm |
| Width B | = | 8mm |
| Min radius r | = | 0.3mm |
| Dynamic load | = | 5100 kN |
| Static load | = | 2390 kN |
| Max speed in oil | = | 32000 rpm |
| Max speed in grease | = | 28000 rpm |
| da min | = | 14mm |
| Da max | = | 26mm |
| ra max | = | 0.3mm |
| Weight | = | 0.023 kg |
