SKU: 6001-2Z-LHT23-SKF

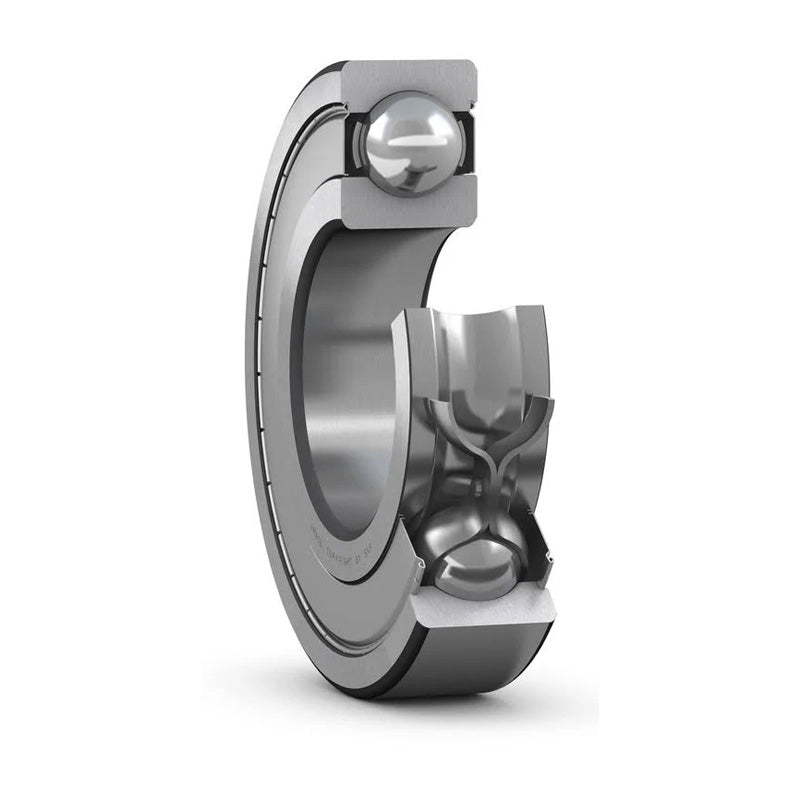

SKF 6001-2Z/LHT23 Metal Shielded Deep Groove Ball Bearing 12x28x8mm
SKF 6001-2Z/LHT23 Metal Shielded Deep Groove Ball Bearing 12x28x8mm
Regular price
€8,97
ex VAT
Regular price
Sale price
€8,97
ex VAT
In stock
Price Break
4+
€6,82
10+
€6,43
20+
€6,36
30+
€6,28
50+
€6,20
75+
€6,13
100+
€5,74
200+
€5,67
250+
€5,59
500+
€5,51
1000+
€5,36
Quantity
Couldn't load pickup availability
Share this product
Description
Description
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing.
Shields can be removed for applications that don't require a shield or only require 1 shield.
Benefits: Provides light mechanical protection, limits moisture and dirt ingress, lubricated for life, cost-effective solution.
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 28mm
- Width:
- 8mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- *Standard
Technical
Technical
| d | 12mm |
|---|---|
| D | 28mm |
| B | 8mm |
| C | 5.4kN |
| Co | 2.36kN |
| Pu | 0.1kN |
| Referance Speed | 60000 r/min |
| Limiting Speed | 30000 r/min |
| d1 | 17mm |
| D2 | 24.72mm |
| r1r2min | 0.3mm |
| damin | 14mm |
| damax | 16.9mm |
| Damax | 26mm |
| ramax | 0.3mm |
| Calculationfactor f0 | 13 |
| Weight | 0.022kg |
