SKU: 60-3-SYN-NO12-RENOLD
Renold Synergy 60-3-NO12 ANSI / AS Triplex Chain Single Cranked Cottered Link 3/4 inch Pitch
- Regular price
- €80,03 ex VAT
- Sale price
- €80,03
- Regular price
-
Not in stock
Quantity Price Breaks
2
€71,23
5
€67,23
10
€66,42
29
€65,62
49
€64,82
75
€64,02
100
€60,02
200
€59,22
250
€58,42
500
€57,62
1000
€56,02
SKU:
60-3-SYN-NO12-RENOLD
Renold Synergy 60-3-NO12 ANSI / AS Triplex Chain Single Cranked Cottered Link 3/4 inch Pitch
- Regular price
- €80,03 ex VAT
- Sale price
- €80,03
- Regular price
-
Description

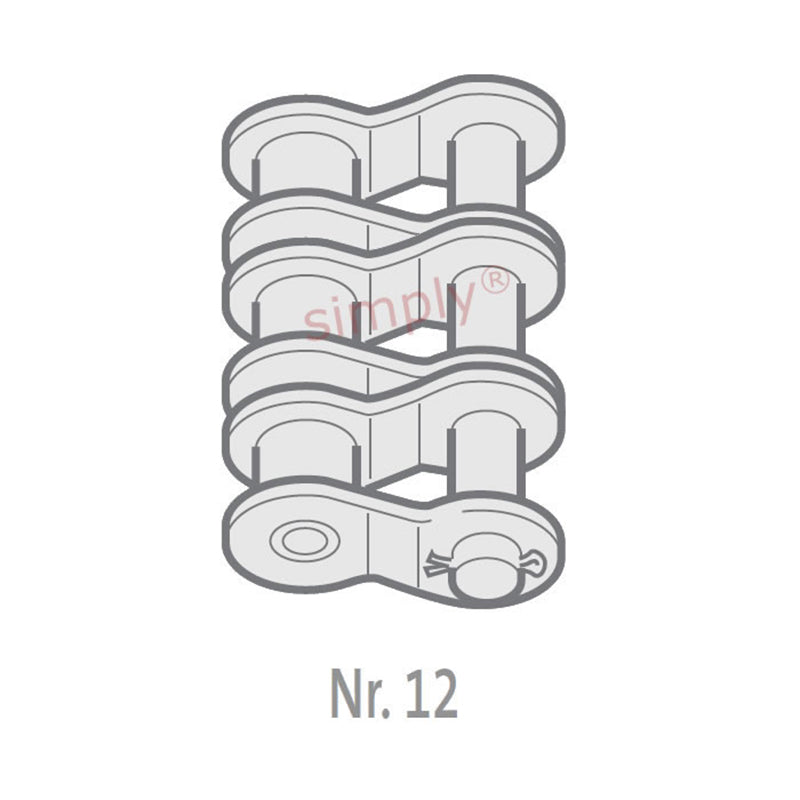

| Renold No. 12 ANSI Triplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
Technical
| Pitch (A) | = | 0.75 inch |
| Pitch (A) | = | 19.05mm |
| Inside Width min (B) | = | 12.57mm |
| Roller Diameter max (C) | = | 11.91mm |
| Plate Height max (D) | = | 17.5mm |
| Plate Width Inner max (E) | = | 2.45mm |
| Plate Width Outer max (F) | = | 2.45mm |
| Pin Diameter max (G) | = | 5.94mm |
| Pin Length max (H2) | = | 70.9mm |
| Connecting Link Extension max (J) | = | 2.6mm |
| Transverse Pitch nom (K) | = | 22.78mm |
| ISO606 Tensile Strength min | = | 93900 N |
| Weight | = | 0.01kg/m |
