SKU: 60-2-SYN-NO30-RENOLD

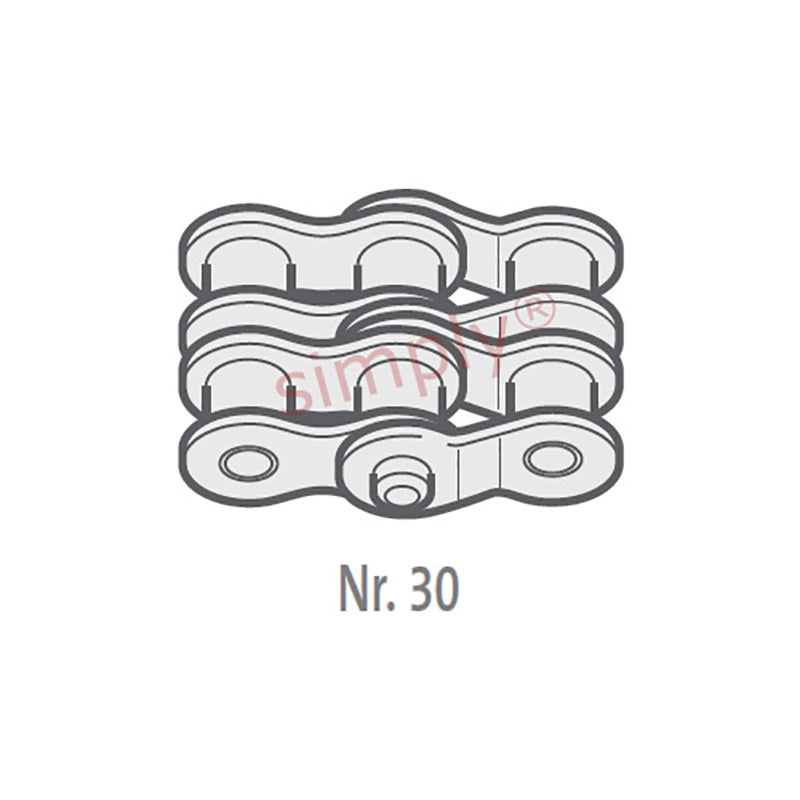

Renold Synergy 60-2-NO30 ANSI / AS Duplex Chain Double Cranked Link 3/4 inch Pitch
- Regular price
- €55,11 ex VAT
- Sale price
- €55,11
- Regular price
-
Not in stock
Quantity Price Breaks
2
€49,05
5
€46,29
10
€45,74
29
€45,19
49
€44,64
75
€44,09
100
€41,33
200
€40,78
250
€40,23
500
€39,68
1000
€38,58
SKU:
60-2-SYN-NO30-RENOLD
Renold Synergy 60-2-NO30 ANSI / AS Duplex Chain Double Cranked Link 3/4 inch Pitch
- Regular price
- €55,11 ex VAT
- Sale price
- €55,11
- Regular price
-
Technical
| Pitch (A) | = | 0.75 inch |
| Pitch (A) | = | 19.05mm |
| Inside Width min (B) | = | 12.57mm |
| Roller Diameter max (C) | = | 11.91mm |
| Plate Height max (D) | = | 17.5mm |
| Plate Width Inner max (E) | = | 2.45mm |
| Plate Width Outer max (F) | = | 2.45mm |
| Pin Diameter max (G) | = | 5.94mm |
| Pin Length max (H2) | = | 48.1mm |
| Connecting Link Extension max (J) | = | 2.6mm |
| Transverse Pitch nom (K) | = | 22.78mm |
| ISO606 Tensile Strength min | = | 62600 N |
| Weight | = | 0.01kg/m |
