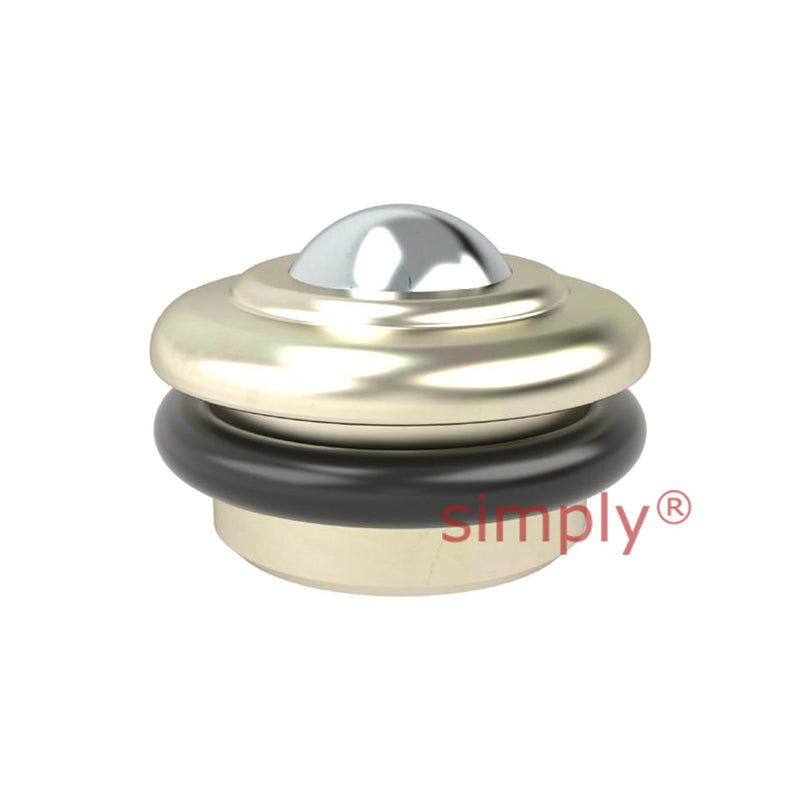

High-Performance Medium Duty Ball Transfer Unit with O-Ring with 34.5mm Steel Ball - Load Capacity 500kg - Allow 2-3 Days
- Regular price
- €93,91 ex VAT
- Sale price
- €93,91
- Regular price
-
Not in stock
Quantity Price Breaks
4
€83,58
9
€78,88
14
€77,95
19
€77,01
49
€76,07
74
€75,13
99
€70,43
199
€69,49
249
€68,55
499
€67,62
999
€65,74
SKU:
570-804
High-Performance Medium Duty Ball Transfer Unit with O-Ring with 34.5mm Steel Ball - Load Capacity 500kg - Allow 2-3 Days
- Regular price
- €93,91 ex VAT
- Sale price
- €93,91
- Regular price
-
Description
CHN43UW9EB
This ball transfer unit is supplied with an o-ring. The inclusion of an O-ring provides enhanced sealing and protection against contaminants, ensuring optimal performance and longevity in challenging environments.
Technical

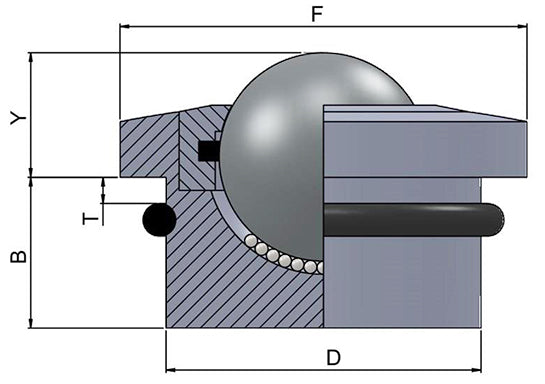

| --- | = | Dimensions |
| Ball Diameter | = | 44.5mm |
| T | = | 5mm |
| B | = | 34.5mm |
| D | = | 62mm |
| Y | = | 19mm |
| F | = | 75mm |
| Total Height | = | 53.5mm |
| --- | = | Loads and Speeds |
| Load Capacity | = | 500 kg |
| Weight | = | 1.04 kg |
| --- | = | Materials |
| Material | = | Body: Zinc Plated Mild Steel< |
| br> | = | Ball: Steel 9Cr180M3 |
