SKU: 53315+U315-EU
53315 Budget Single Thrust Ball Bearing with Spherical Housing Seat U315 75x135x52mm
- Regular price
- €204,87 ex VAT
- Sale price
- €204,87
- Regular price
-
Not in stock
Quantity Price Breaks
10
€182,33
19
€172,09
29
€170,04
39
€167,99
49
€165,94
74
€163,90
99
€153,65
199
€151,60
249
€149,56
499
€147,51
999
€143,41
SKU:
53315+U315-EU
53315 Budget Single Thrust Ball Bearing with Spherical Housing Seat U315 75x135x52mm
- Regular price
- €204,87 ex VAT
- Sale price
- €204,87
- Regular price
-
Description
|
Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. The lower washer has a spherical face to be used with a spherical housing washer. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |

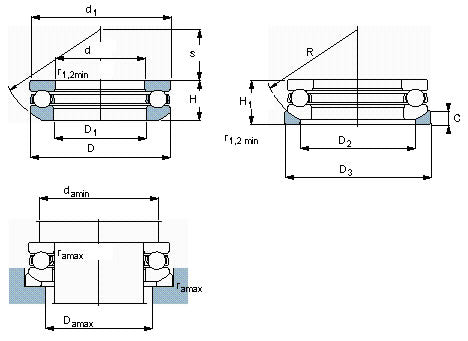

Technical
| d | = | 75mm |
| D | = | 135mm |
| H1 | = | 52mm |
| Dynamic load C | = | 163 kN |
| Static load Co | = | 390 kN |
| Fatigue load limit Pu | = | 14 kN |
| Minimum load factor A | = | 0.79 |
| Reference speed | = | 1700 rpm |
| Limiting Speed | = | 2400 rpm |
| Weight | = | 3.2 kg |
| Seating Washer | = | U315 |
| d1 | = | 135mm |
| D1 | = | 77mm |
| D2 | = | 105mm |
| D3 | = | 140mm |
| H | = | 48.1mm |
| C | = | 15mm |
| R | = | 100mm |
| s | = | 37mm |
| r1r2 min | = | 1.5mm |
| da max | = | 111mm |
| Da max | = | 105mm |
| ra max | = | 1.5mm |
