SKU: 52406-EU

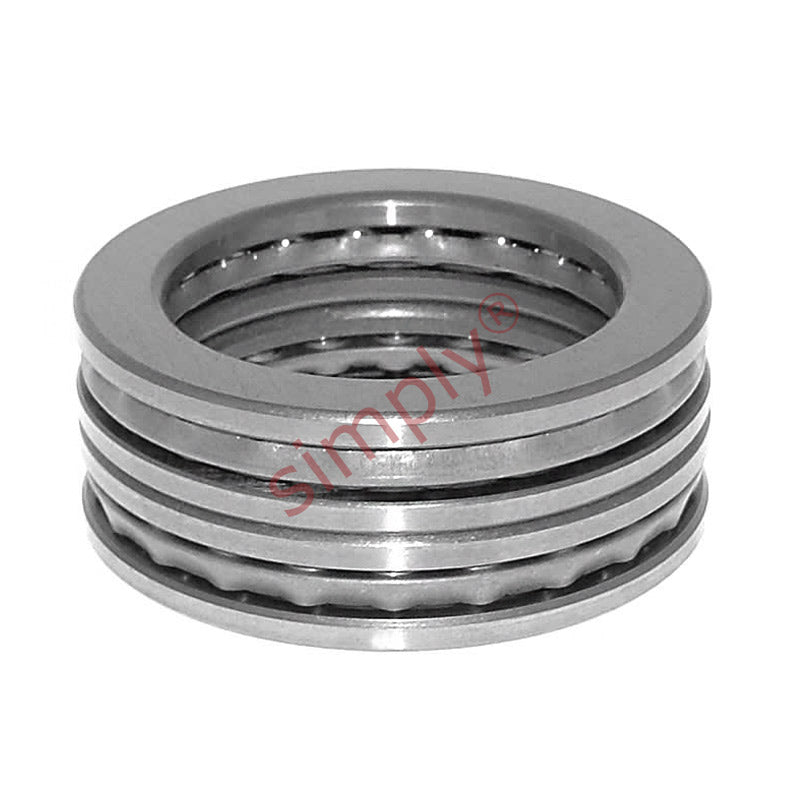

52406 Budget Double Thrust Ball Bearing with Flat Seats 20x70x52mm
- Regular price
- €235,19 ex VAT
- Sale price
- €235,19
- Regular price
-
Not in stock
Quantity Price Breaks
10
€209,32
19
€197,56
29
€195,21
39
€192,86
49
€190,50
74
€188,15
99
€176,39
199
€174,04
249
€171,69
499
€169,34
999
€164,63
SKU:
52406-EU
52406 Budget Double Thrust Ball Bearing with Flat Seats 20x70x52mm
- Regular price
- €235,19 ex VAT
- Sale price
- €235,19
- Regular price
-
Description
|
Double Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of five parts, a top, bottom and middle plate with annular grooves in them and two caged ball bearing assemblies that are sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in two directions. Clearance is provided in the bore of Centre of the raceways to allow for alignment. |
Technical
| d | = | 20mm |
| D | = | 70mm |
| H | = | 52mm |
| Dynamic load C | = | 72.8 kN |
| Static load Co | = | 137 kN |
| Fatigue load Pu | = | 5.1 kN |
| Minimum load factor A | = | 0.097 |
| Reference speed | = | 3600 rpm |
| Limiting speed | = | 5000 rpm |
| Weight | = | 1 kg |
| D1 | = | 32mm |
| B | = | 12mm |
| r1r2 min | = | 1mm |
| r3r4 min | = | 0.6mm |
| da | = | 30mm |
| Da max | = | 46mm |
| ra max | = | 1mm |
| rb max | = | 0.6mm |
