SKU: 52320-EU

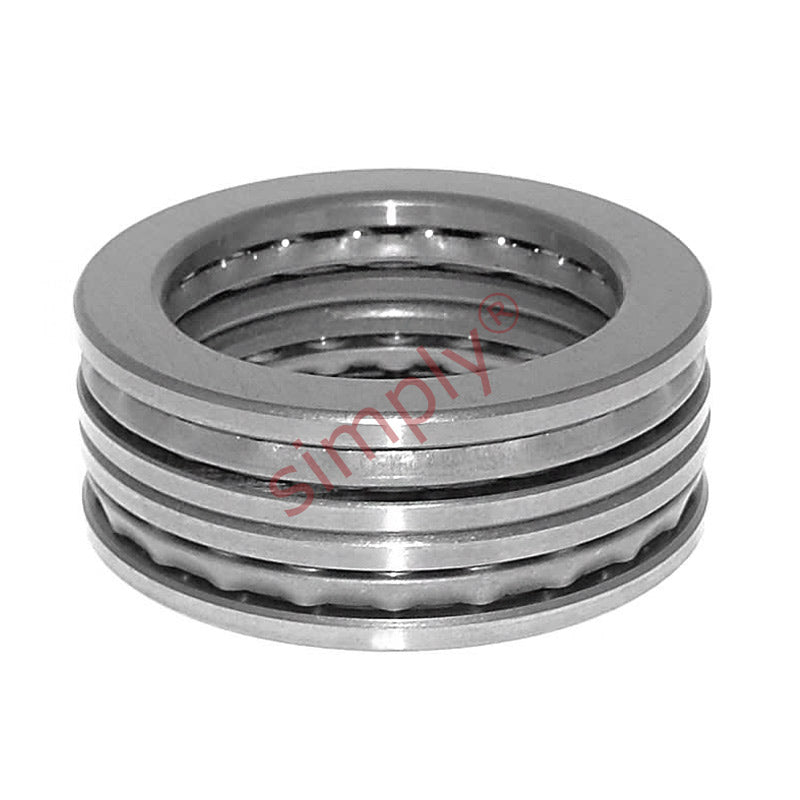

52320 Budget Double Thrust Ball Bearing with Flat Seats 85x170x97mm
- Regular price
- €1.042,68 ex VAT
- Sale price
- €1.042,68
- Regular price
-
Not in stock
Quantity Price Breaks
10
€927,99
19
€875,85
29
€865,42
39
€855,00
49
€844,57
74
€834,14
99
€782,01
199
€771,58
249
€761,16
499
€750,73
999
€729,88
SKU:
52320-EU
52320 Budget Double Thrust Ball Bearing with Flat Seats 85x170x97mm
- Regular price
- €1.042,68 ex VAT
- Sale price
- €1.042,68
- Regular price
-
Description
|
Double Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of five parts, a top, bottom and middle plate with annular grooves in them and two caged ball bearing assemblies that are sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in two directions. Clearance is provided in the bore of Centre of the raceways to allow for alignment. |
Technical
| d | = | 85mm |
| D | = | 170mm |
| H | = | 97mm |
| Dynamic load C | = | 229 kN |
| Static load Co | = | 610 kN |
| Fatigue load Pu | = | 19.6 kN |
| Minimum load factor A | = | 1.9 |
| Reference speed | = | 1400 rpm |
| Limiting speed | = | 1900 rpm |
| Weight | = | 8.95 kg |
| D1 | = | 103mm |
| B | = | 21mm |
| r1r2 min | = | 1.5mm |
| r3r4 min | = | 1mm |
| da | = | 100mm |
| Da max | = | 128mm |
| ra max | = | 1.5mm |
| rb max | = | 1mm |
