SKU: 52228.MB

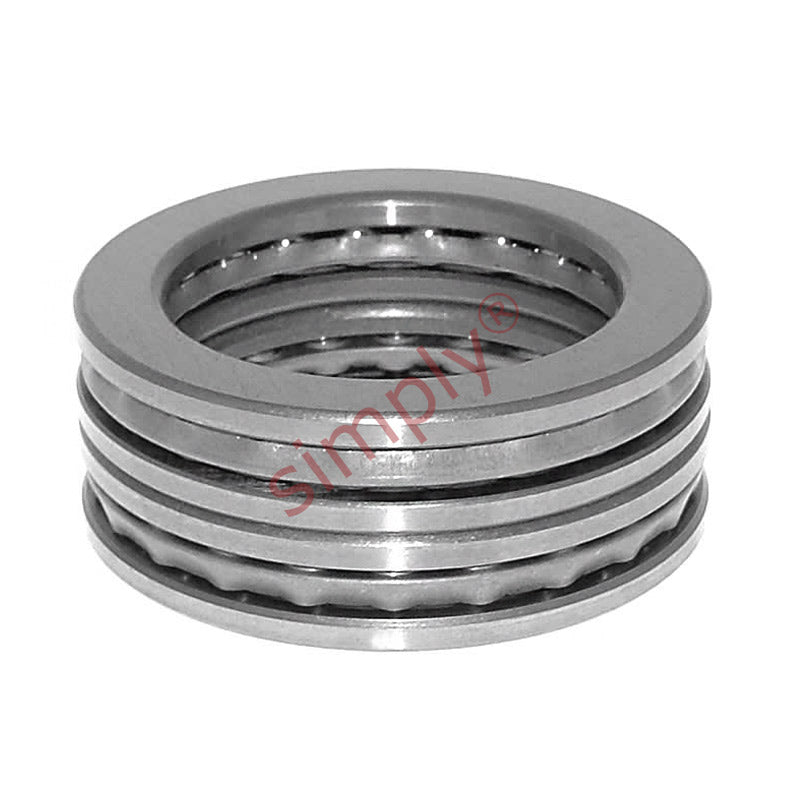

52228 Double Thrust Ball Bearing with Flat Seats 120x200x81mm
- Regular price
- €1.111,91 ex VAT
- Sale price
- €1.111,91
- Regular price
-
Not in stock
Quantity Price Breaks
10
€989,60
19
€934,00
29
€922,89
39
€911,77
49
€900,65
74
€889,53
99
€833,93
199
€822,81
249
€811,69
499
€800,58
999
€778,34
SKU:
52228.MB
52228 Double Thrust Ball Bearing with Flat Seats 120x200x81mm
- Regular price
- €1.111,91 ex VAT
- Sale price
- €1.111,91
- Regular price
-
Description
|
Double Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of five parts, a top, bottom and middle plate with annular grooves in them and two caged ball bearing assemblies that are sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in two directions. Clearance is provided in the bore of Centre of the raceways to allow for alignment. |
Technical
| d | = | 120mm |
| D | = | 200mm |
| H | = | 81mm |
| Dynamic load C | = | 190 kN |
| Static load Co | = | 620 kN |
| Fatigue load Pu | = | 17.6 kN |
| Minimum load factor A | = | 2 |
| Reference speed | = | 1400 rpm |
| Limiting speed | = | 1900 rpm |
| Weight | = | 8.65 kg |
| D1 | = | 143mm |
| B | = | 18mm |
| r1r2 min | = | 1.5mm |
| r3r4 min | = | 1.1mm |
| da | = | 140mm |
| Da max | = | 164mm |
| ra max | = | 1.5mm |
| rb max | = | 1mm |
