SKU: 52222-EU

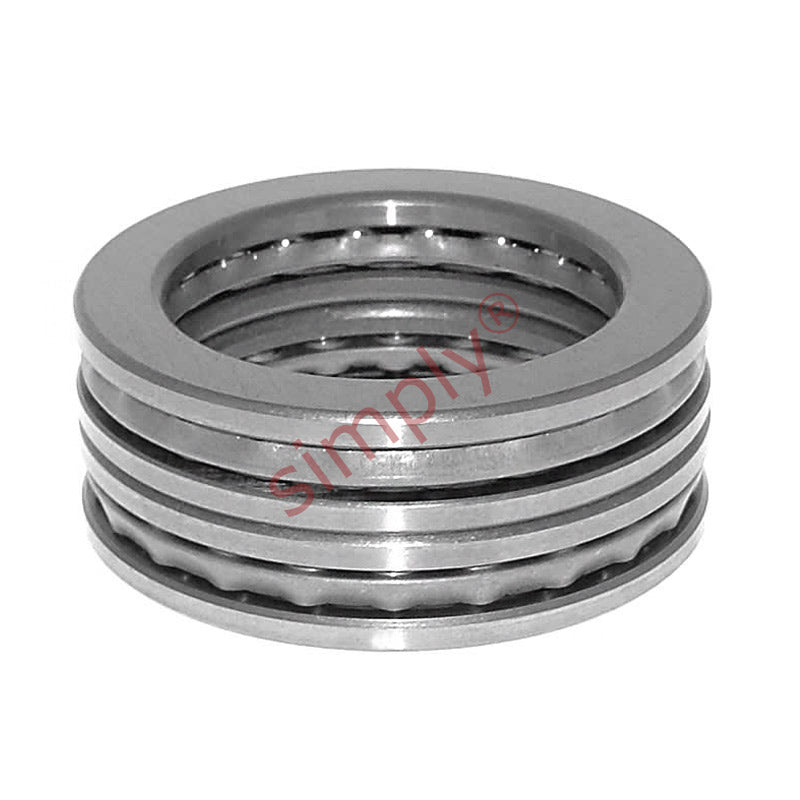

52222 Budget Double Thrust Ball Bearing with Flat Seats 95x160x67mm
- Regular price
- €546,89 ex VAT
- Sale price
- €546,89
- Regular price
-
ex VAT
Not in stock
Quantity Price Breaks
10
€486,73
19
€459,39
29
€453,92
39
€448,45
49
€442,98
74
€437,51
99
€410,17
199
€404,70
249
€399,23
499
€393,76
999
€382,82
Description
|
Double Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of five parts, a top, bottom and middle plate with annular grooves in them and two caged ball bearing assemblies that are sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in two directions. Clearance is provided in the bore of Centre of the raceways to allow for alignment. |
Technical
| d | = | 95mm |
| D | = | 160mm |
| H | = | 67mm |
| Dynamic load C | = | 130 kN |
| Static load Co | = | 390 kN |
| Fatigue load Pu | = | 12.5 kN |
| Minimum load factor A | = | 0.79 |
| Reference speed | = | 1700 rpm |
| Limiting speed | = | 2400 rpm |
| Weight | = | 4.65 kg |
| D1 | = | 113mm |
| B | = | 15mm |
| r1r2 min | = | 1.1mm |
| r3r4 min | = | 1mm |
| da | = | 110mm |
| Da max | = | 130mm |
| ra max | = | 1mm |
| rb max | = | 1mm |
