SKU: 52220-EU

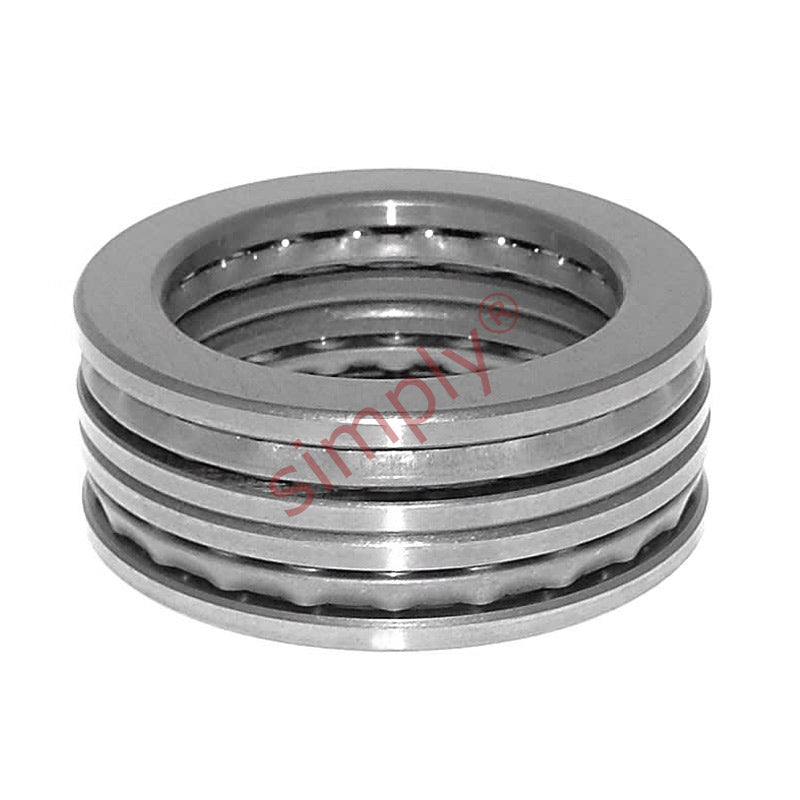

52220 Budget Double Thrust Ball Bearing with Flat Seats 85x150x67mm
- Regular price
- €433,45 ex VAT
- Sale price
- €433,45
- Regular price
-
ex VAT
Not in stock
Quantity Price Breaks
10
€385,77
19
€364,10
29
€359,76
39
€355,43
49
€351,09
74
€346,76
99
€325,09
199
€320,75
249
€316,42
499
€312,08
999
€303,42
Description
|
Double Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of five parts, a top, bottom and middle plate with annular grooves in them and two caged ball bearing assemblies that are sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in two directions. Clearance is provided in the bore of Centre of the raceways to allow for alignment. |
Technical
| d | = | 85mm |
| D | = | 150mm |
| H | = | 67mm |
| Dynamic load C | = | 124 kN |
| Static load Co | = | 345 kN |
| Fatigue load Pu | = | 11.4 kN |
| Minimum load factor A | = | 0.62 |
| Reference speed | = | 1800 rpm |
| Limiting speed | = | 2400 rpm |
| Weight | = | 4.2 kg |
| D1 | = | 103mm |
| B | = | 15mm |
| r1r2 min | = | 1.1mm |
| r3r4 min | = | 1mm |
| da | = | 100mm |
| Da max | = | 120mm |
| ra max | = | 1mm |
| rb max | = | 1mm |
