SKU: 52217-EU
52217 Budget Double Thrust Ball Bearing with Flat Seats 70x125x55mm
- Regular price
- €255,33 ex VAT
- Sale price
- €255,33
- Regular price
-
Not in stock
Quantity Price Breaks
10
€227,24
19
€214,48
29
€211,92
39
€209,37
49
€206,82
74
€204,26
99
€191,50
199
€188,94
249
€186,39
499
€183,84
999
€178,73
SKU:
52217-EU
52217 Budget Double Thrust Ball Bearing with Flat Seats 70x125x55mm
- Regular price
- €255,33 ex VAT
- Sale price
- €255,33
- Regular price
-
Description
|
Double Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of five parts, a top, bottom and middle plate with annular grooves in them and two caged ball bearing assemblies that are sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in two directions. Clearance is provided in the bore of Centre of the raceways to allow for alignment. |

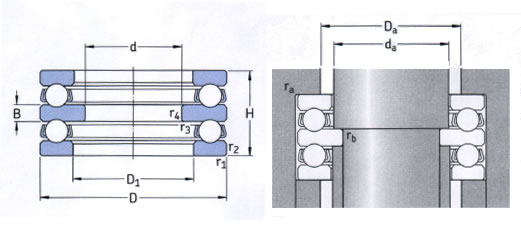

Technical
| d | = | 70mm |
| D | = | 125mm |
| H | = | 55mm |
| Dynamic load C | = | 97.5 kN |
| Static load Co | = | 275 kN |
| Fatigue load Pu | = | 9.8 kN |
| Minimum load factor A | = | 0.39 |
| Reference speed | = | 2200 rpm |
| Limiting speed | = | 3000 rpm |
| Weight | = | 2.4 kg |
| D1 | = | 88mm |
| B | = | 12mm |
| r1r2 min | = | 1mm |
| r3r4 min | = | 1mm |
| da | = | 85mm |
| Da max | = | 101mm |
| ra max | = | 1mm |
| rb max | = | 1mm |
