SKU: 51217-CDX
Codex 51217 Single Thrust Ball Bearing 85x125x31mm
- Regular price
- €91,45 ex VAT
- Sale price
- €91,45
- Regular price
-
In stock
Quantity Price Breaks
10
€81,39
19
€76,82
29
€75,90
39
€74,99
49
€74,07
74
€73,16
99
€68,59
199
€67,67
249
€66,76
499
€65,84
999
€64,02
SKU:
51217-CDX
Codex 51217 Single Thrust Ball Bearing 85x125x31mm
- Regular price
- €91,45 ex VAT
- Sale price
- €91,45
- Regular price
-
Description

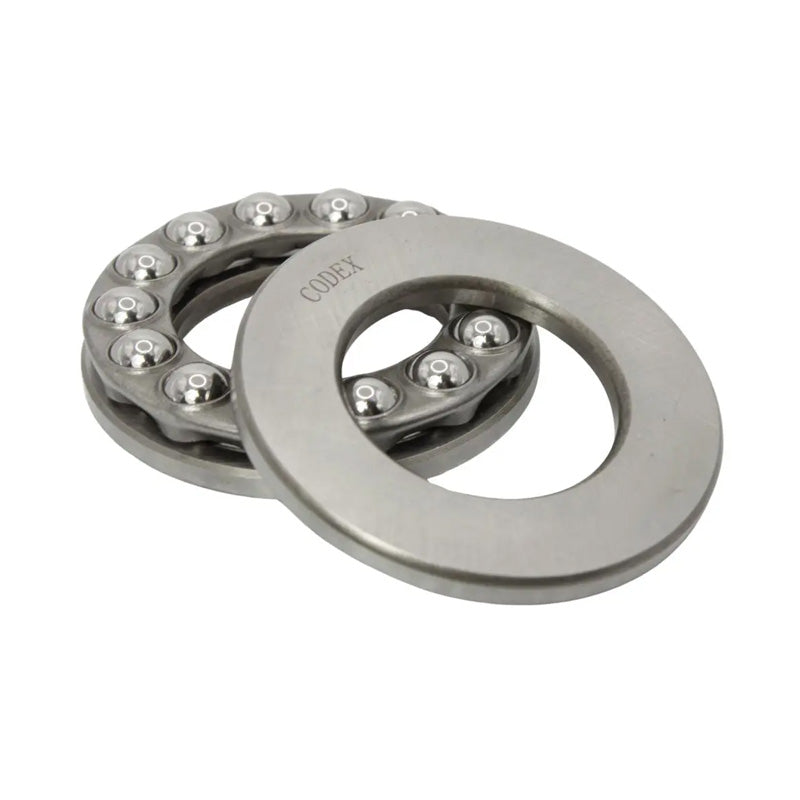

Codex Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
Technical
| d | = | 85 |
| D | = | 125 |
| H | = | 31 |
| Dynamic Load | = | 97.5 kN |
| Static Load | = | 275 kN |
| Pu | = | 9.8 |
| A | = | 0.39 |
| Ref Speed | = | 2200 rpm |
| Limiting Speed | = | 3000 rpm |
| kg | = | 1.2 |
| d1 | = | 125 |
| D1 | = | 88 |
| r1r2 min | = | 1 |
| da min | = | 109 |
| Da max | = | 101 |
| ra max | = | 1 |
