SKU: 51214-CDX

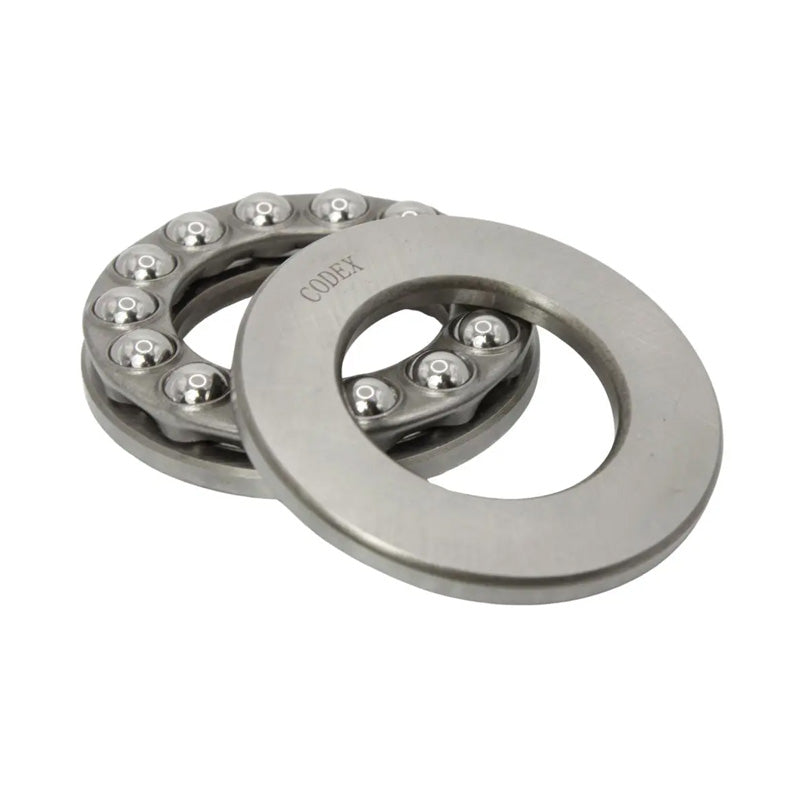

Codex 51214 Single Thrust Ball Bearing 70x105x27mm
- Regular price
- €64,55 ex VAT
- Sale price
- €64,55
- Regular price
-
In stock
Quantity Price Breaks
10
€57,45
19
€54,22
29
€53,58
39
€52,93
49
€52,29
74
€51,64
99
€48,41
199
€47,77
249
€47,12
499
€46,48
999
€45,19
SKU:
51214-CDX
Codex 51214 Single Thrust Ball Bearing 70x105x27mm
- Regular price
- €64,55 ex VAT
- Sale price
- €64,55
- Regular price
-
Description
Codex Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
Technical
| d | = | 70 |
| D | = | 105 |
| H | = | 27 |
| Dynamic Load | = | 65 kN |
| Static Load | = | 173 kN |
| Pu | = | 6.4 |
| A | = | 0.16 |
| Ref Speed | = | 2600 rpm |
| Limiting Speed | = | 3600 rpm |
| kg | = | 0.79 |
| d1 | = | 105 |
| D1 | = | 72 |
| r1r2 min | = | 1 |
| da min | = | 91 |
| Da max | = | 84 |
| ra max | = | 1 |
