SKU: 51212-CDX

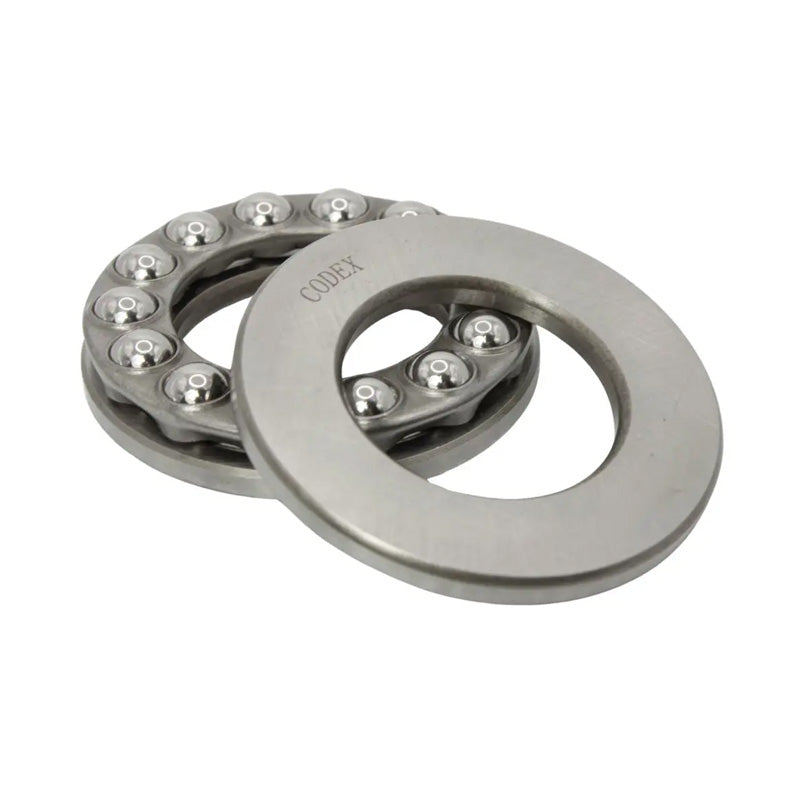

Codex 51212 Single Thrust Ball Bearing 60x95x26mm
- Regular price
- €51,14 ex VAT
- Sale price
- €51,14
- Regular price
-
In stock
Quantity Price Breaks
10
€45,51
19
€42,96
29
€42,45
39
€41,93
49
€41,42
74
€40,91
99
€38,36
199
€37,84
249
€37,33
499
€36,82
999
€35,80
SKU:
51212-CDX
Codex 51212 Single Thrust Ball Bearing 60x95x26mm
- Regular price
- €51,14 ex VAT
- Sale price
- €51,14
- Regular price
-
Description
Codex Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
Technical
| d | = | 60 |
| D | = | 95 |
| H | = | 26 |
| Dynamic Load | = | 62.4 kN |
| Static Load | = | 150 kN |
| Pu | = | 5.6 |
| A | = | 0.12 |
| Ref Speed | = | 2800 rpm |
| Limiting Speed | = | 3800 rpm |
| kg | = | 0.65 |
| d1 | = | 95 |
| D1 | = | 62 |
| r1r2 min | = | 1 |
| da min | = | 81 |
| Da max | = | 74 |
| ra max | = | 1 |
