SKU: 51209-CDX

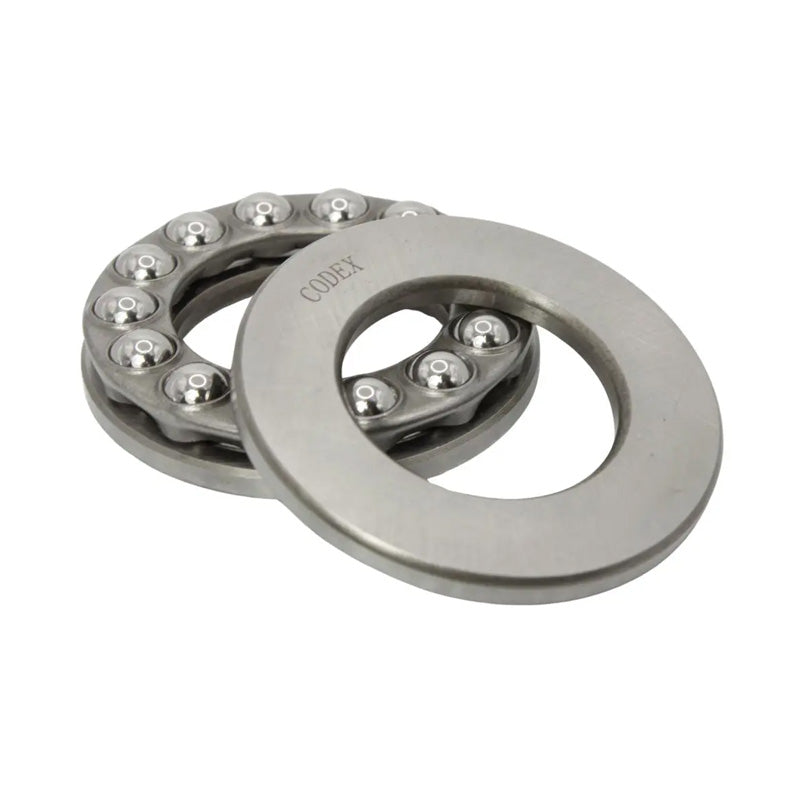

Codex 51209 Single Thrust Ball Bearing 45x73x20mm
- Regular price
- €30,51 ex VAT
- Sale price
- €30,51
- Regular price
-
In stock
Quantity Price Breaks
10
€27,15
19
€25,63
29
€25,32
39
€25,02
49
€24,71
74
€24,41
99
€22,88
199
€22,58
249
€22,27
499
€21,97
999
€21,36
SKU:
51209-CDX
Codex 51209 Single Thrust Ball Bearing 45x73x20mm
- Regular price
- €30,51 ex VAT
- Sale price
- €30,51
- Regular price
-
Description
Codex Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
Technical
| d | = | 45 |
| D | = | 73 |
| H | = | 20 |
| Dynamic Load | = | 39 kN |
| Static Load | = | 86.5 kN |
| Pu | = | 3.2 |
| A | = | 0.038 |
| Ref Speed | = | 3600 rpm |
| Limiting Speed | = | 5000 rpm |
| kg | = | 0.3 |
| d1 | = | 73 |
| D1 | = | 47 |
| r1r2 min | = | 1 |
| da min | = | 62 |
| Da max | = | 56 |
| ra max | = | 1 |
