SKU: 51207-CDX

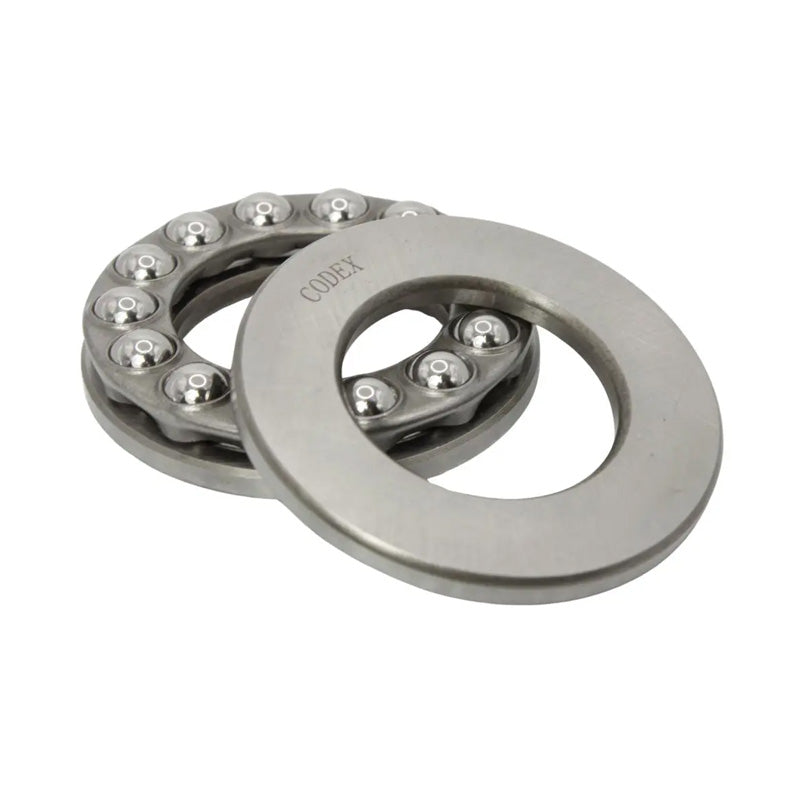

Codex 51207 Single Thrust Ball Bearing 35x62x18mm
- Regular price
- €24,80 ex VAT
- Sale price
- €24,80
- Regular price
-
In stock
Quantity Price Breaks
10
€22,07
19
€20,83
29
€20,58
39
€20,34
49
€20,09
74
€19,84
99
€18,60
199
€18,35
249
€18,10
499
€17,86
999
€17,36
SKU:
51207-CDX
Codex 51207 Single Thrust Ball Bearing 35x62x18mm
- Regular price
- €24,80 ex VAT
- Sale price
- €24,80
- Regular price
-
Description
Codex Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
Technical
| d | = | 35 |
| D | = | 62 |
| H | = | 18 |
| Dynamic Load | = | 35.1 kN |
| Static Load | = | 73.5 kN |
| Pu | = | 2.7 |
| A | = | 0.028 |
| Ref Speed | = | 4000 rpm |
| Limiting Speed | = | 5600 rpm |
| kg | = | 0.22 |
| d1 | = | 62 |
| D1 | = | 37 |
| r1r2 min | = | 1 |
| da min | = | 51 |
| Da max | = | 46 |
| ra max | = | 1 |
