SKU: 51200-CDX

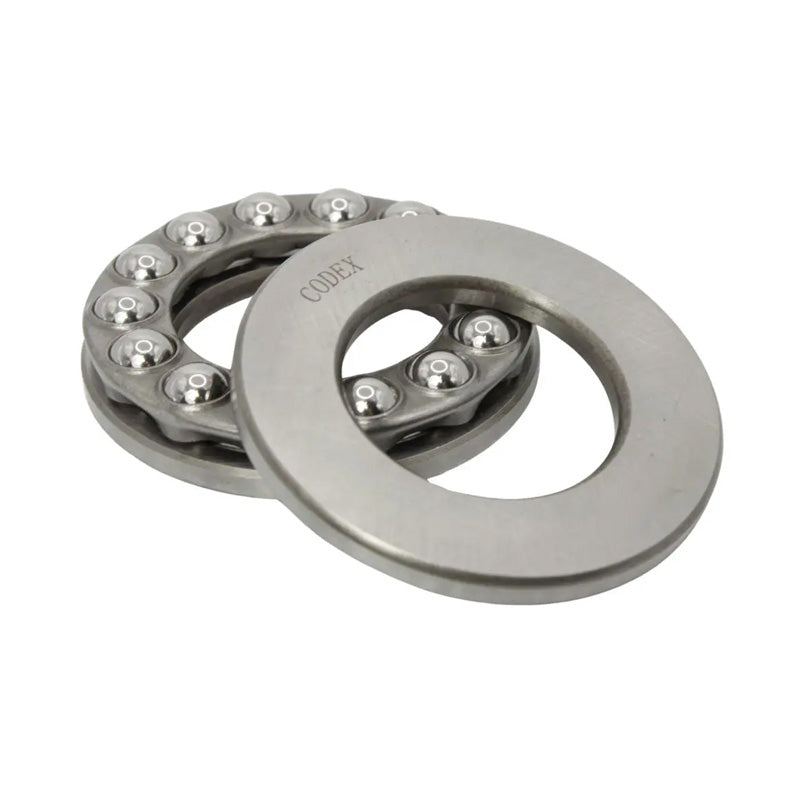

Codex 51200 Single Thrust Ball Bearing 10x26x11mm
- Regular price
- €14,80 ex VAT
- Sale price
- €14,80
- Regular price
-
In stock
Quantity Price Breaks
10
€13,17
19
€12,43
29
€12,28
39
€12,14
49
€11,99
74
€11,84
99
€11,10
199
€10,95
249
€10,80
499
€10,66
999
€10,36
SKU:
51200-CDX
Codex 51200 Single Thrust Ball Bearing 10x26x11mm
- Regular price
- €14,80 ex VAT
- Sale price
- €14,80
- Regular price
-
Description
Codex Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
Technical
| d | = | 10 |
| D | = | 26 |
| H | = | 11 |
| Dynamic Load | = | 12.7 kN |
| Static Load | = | 18.6 kN |
| Pu | = | 0.7 |
| A | = | 0.0018 |
| Ref Speed | = | 8000 rpm |
| Limiting Speed | = | 11000 rpm |
| kg | = | 0.03 |
| d1 | = | 26 |
| D1 | = | 12 |
| r1r2 min | = | 0.6 |
| da min | = | 20 |
| Da max | = | 16 |
| ra max | = | 0.6 |
