SKU: 51100-CDX

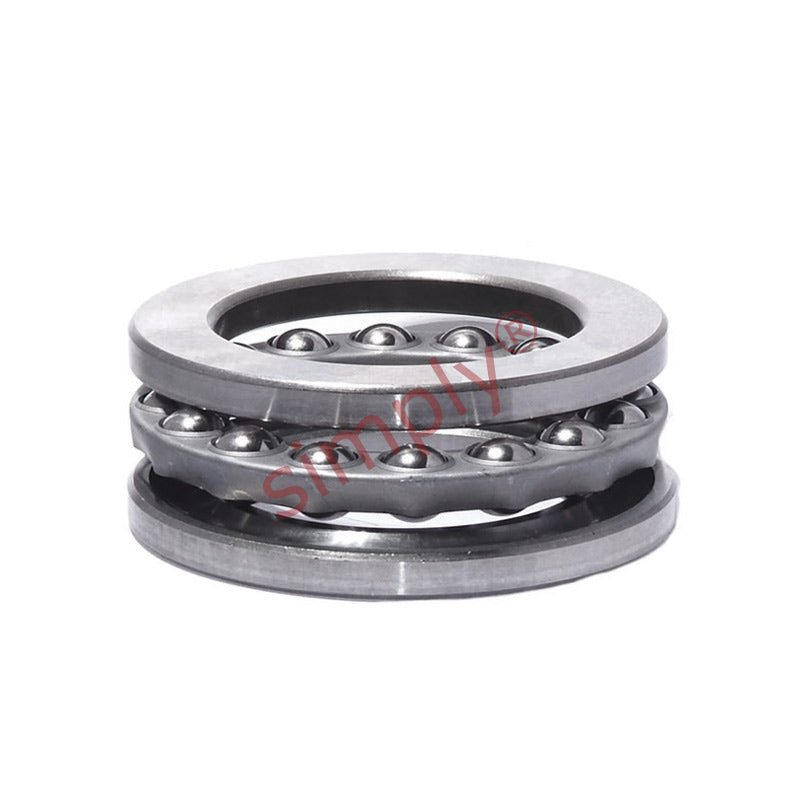

Codex 51100 Single Thrust Ball Bearing 10x24x9mm
- Regular price
- €10,98 ex VAT
- Sale price
- €10,98
- Regular price
-
In stock
Quantity Price Breaks
10
€9,77
19
€9,22
29
€9,11
39
€9,00
49
€8,89
74
€8,78
99
€8,24
199
€8,13
249
€8,02
499
€7,91
999
€7,69
SKU:
51100-CDX

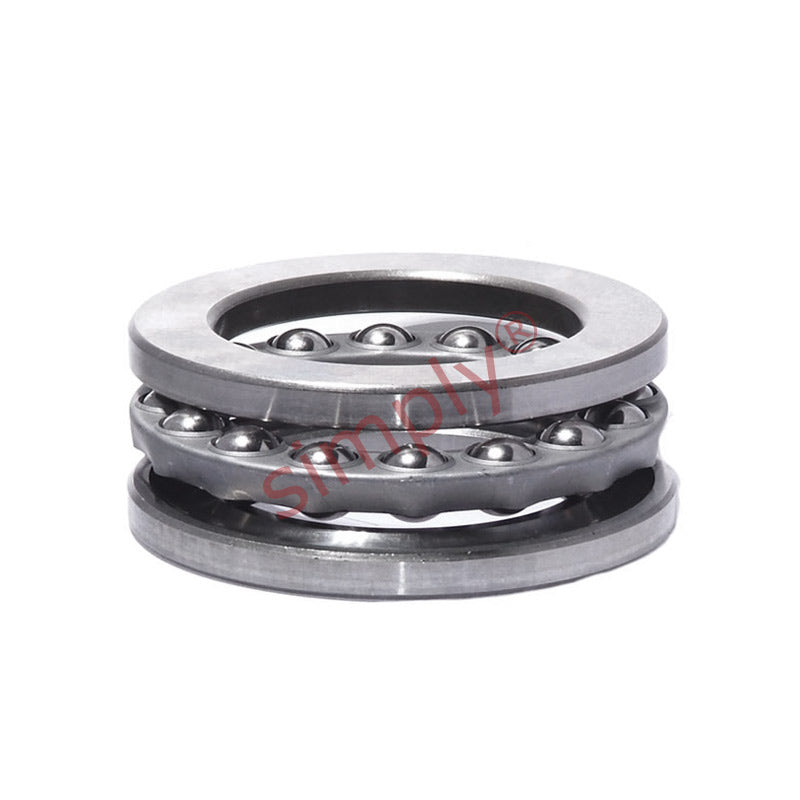

Codex 51100 Single Thrust Ball Bearing 10x24x9mm
- Regular price
- €10,98 ex VAT
- Sale price
- €10,98
- Regular price
-
Description
Codex Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
Technical
| d | = | 10 |
| D | = | 24 |
| H | = | 9 |
| Dynamic Load | = | 9.95 kN |
| Static Load | = | 15.3 kN |
| Pu | = | 0.56 |
| A | = | 0.0012 |
| Ref Speed | = | 9500 rpm |
| Limiting Speed | = | 13000 rpm |
| kg | = | 0.02 |
| d1 | = | 24 |
| D1 | = | 11 |
| r1r2 min | = | 0.3 |
| da min | = | 19 |
| Da max | = | 15 |
| ra max | = | 0.3 |
