SKU: 50-3-SYN-NO11-RENOLD
Renold Synergy 50-3-NO11 ANSI / AS Triplex Chain Cottered Connecting Link 5/8 inch Pitch
- Regular price
- €33,26 ex VAT
- Sale price
- €33,26
- Regular price
-
Not in stock
Quantity Price Breaks
2
€29,60
5
€27,94
10
€27,61
29
€27,27
49
€26,94
75
€26,61
100
€24,95
200
€24,61
250
€24,28
500
€23,95
1000
€23,28
SKU:
50-3-SYN-NO11-RENOLD
Renold Synergy 50-3-NO11 ANSI / AS Triplex Chain Cottered Connecting Link 5/8 inch Pitch
- Regular price
- €33,26 ex VAT
- Sale price
- €33,26
- Regular price
-
Description

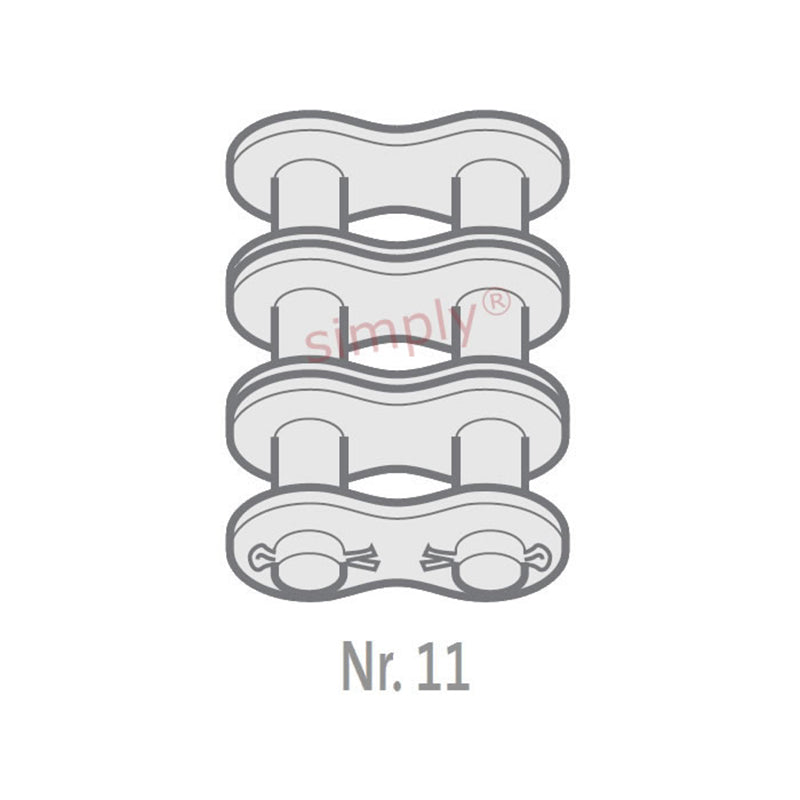

| Renold No. 11 ANSI Triplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
Technical
| Pitch (A) | = | 0.625 inch |
| Pitch (A) | = | 15.875mm |
| Inside Width min (B) | = | 9.4mm |
| Roller Diameter max (C) | = | 10.16mm |
| Plate Height max (D) | = | 14.6mm |
| Plate Width Inner max (E) | = | 2.04mm |
| Plate Width Outer max (F) | = | 2.04mm |
| Pin Diameter max (G) | = | 5.08mm |
| Pin Length max (H2) | = | 56.5mm |
| Connecting Link Extension max (J) | = | 2.7mm |
| Transverse Pitch nom (K) | = | 18.11mm |
| ISO606 Tensile Strength min | = | 65400 N |
| Weight | = | 0.01kg/m |
