SKU: 50-2-NO12-MB
Branded 50-2-NO12 ANSI / AS Duplex Chain Single Cranked Cottered Link 5/8 inch Pitch
- Regular price
- €5,98 ex VAT
- Sale price
- €5,98
- Regular price
-
In stock
Quantity Price Breaks
2
€5,32
5
€5,02
10
€4,96
29
€4,90
49
€4,84
75
€4,78
100
€4,49
200
€4,43
250
€4,37
500
€4,31
1000
€4,19
SKU:
50-2-NO12-MB
Branded 50-2-NO12 ANSI / AS Duplex Chain Single Cranked Cottered Link 5/8 inch Pitch
- Regular price
- €5,98 ex VAT
- Sale price
- €5,98
- Regular price
-
Description

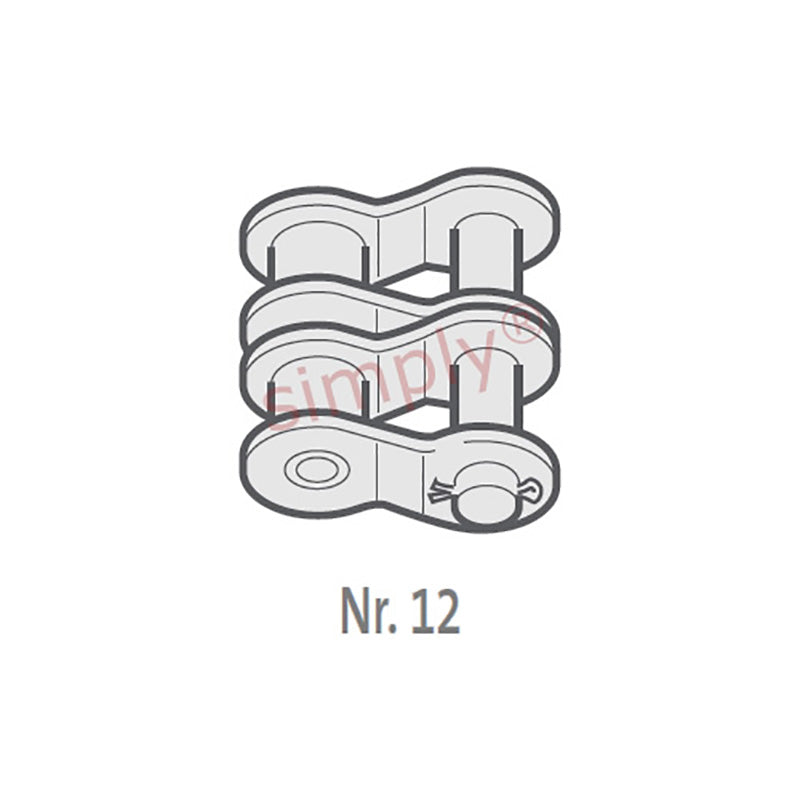

Branded OL / No. 12 ANSI Duplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin.
Technical
| Pitch (A) | = | 0.625 inch |
| Pitch (A) | = | 15.875mm |
| Inside Width min (B) | = | 9.4mm |
| Roller Diameter max (C) | = | 10.16mm |
| Plate Height max (D) | = | 15.09mm |
| Plate Width Inner max (E) | = | 2mm |
| Plate Width Outer max (F) | = | 2mm |
| Pin Diameter max (G) | = | 5.08mm |
| Pin Length max (H2) | = | 39mm |
| Connecting Link Extension max (J) | = | 1.3mm |
| Transverse Pitch nom (K) | = | 18.11mm |
| ISO606 Tensile Strength min | = | 43600 N |
| Weight | = | 0.01kg/m |
