SKU: 50-1-BB-NO30-RENOLD
Renold Blue Box 50-1-NO30 ANSI / AS Simplex Chain Double Cranked Link 1/2 inch Pitch
- Regular price
- €13,13 ex VAT
- Sale price
- €13,13
- Regular price
-
In stock
Quantity Price Breaks
2
€11,69
5
€11,03
10
€10,90
29
€10,77
49
€10,64
75
€10,50
100
€9,85
200
€9,72
250
€9,58
500
€9,45
1000
€9,19
SKU:
50-1-BB-NO30-RENOLD
Renold Blue Box 50-1-NO30 ANSI / AS Simplex Chain Double Cranked Link 1/2 inch Pitch
- Regular price
- €13,13 ex VAT
- Sale price
- €13,13
- Regular price
-
Description

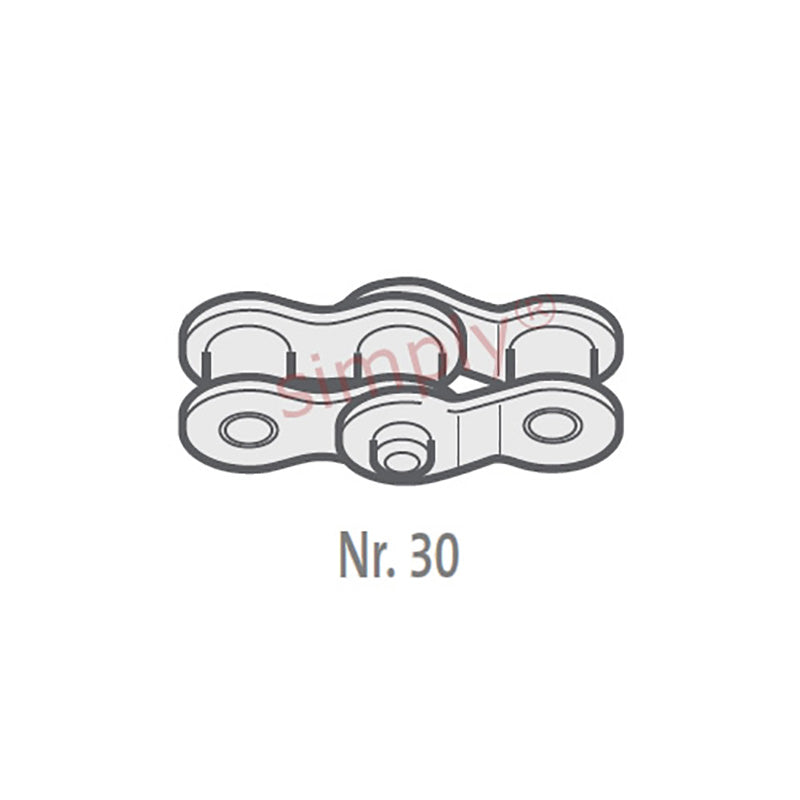

| Renold No. 30 ANSI Simplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin. |
Technical
| Pitch (A) | = | 0.5 inch |
| Pitch (A) | = | 12.7mm |
| Inside Width min (B) | = | 7.85mm |
| Roller Diameter max (C) | = | 7.92mm |
| Plate Height max (D) | = | 11.2mm |
| Plate Width Inner max (E) | = | 1.55mm |
| Plate Width Outer max (F) | = | 1.55mm |
| Pin Diameter max (G) | = | 3.97mm |
| Pin Length max (H2) | = | 16.4mm |
| Connecting Link Extension max (J) | = | 2.1mm |
| ISO606 Tensile Strength min | = | 13900 N |
| Weight | = | 0.015kg/m |
