SKU: 40B-2-NO11-DUN
Branded 40B-2-NO11 BS Duplex Chain Cottered Connecting Link 2-1/2 inch Pitch
- Regular price
- €69,66 ex VAT
- Sale price
- €69,66
- Regular price
-
Not in stock
Quantity Price Breaks
2
€62,00
5
€58,51
10
€57,82
29
€57,12
49
€56,42
75
€55,73
100
€52,25
200
€51,55
250
€50,85
500
€50,16
1000
€48,76
SKU:
40B-2-NO11-DUN
Branded 40B-2-NO11 BS Duplex Chain Cottered Connecting Link 2-1/2 inch Pitch
- Regular price
- €69,66 ex VAT
- Sale price
- €69,66
- Regular price
-
Description

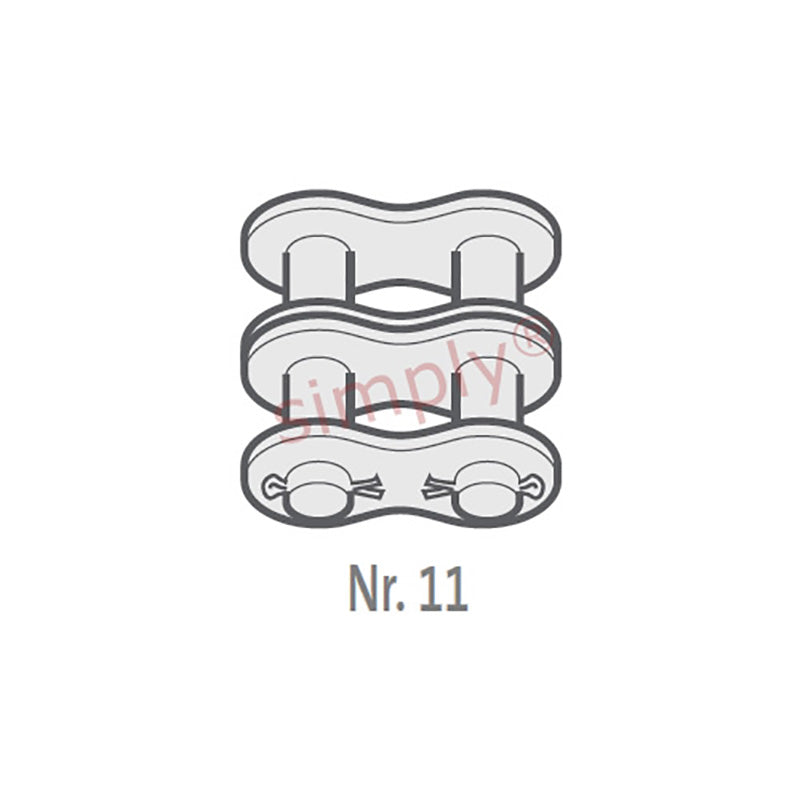

Dunlop COT / No. 11 European (BS) Duplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin.
Technical
| Pitch (A) | = | 2.5 inch |
| Pitch (A) | = | 63.5mm |
| Inside Width min (B) | = | 39.3mm |
| Roller Diameter max (C) | = | 39.37mm |
| Plate Height max (D) | = | 52.96mm |
| Plate Width Inner max (E) | = | 8.13mm |
| Plate Width Outer max (F) | = | 8.13mm |
| Pin Diameter max (G) | = | 22.89mm |
| Pin Length max (H2) | = | 150.5mm |
| Connecting Link Extension max (J) | = | 9.5mm |
| Transverse Pitch nom (K) | = | 72.29mm |
| ISO606 Tensile Strength min | = | 630000 N |
| Weight | = | 2kg/m |
