SKU: 40-3-BB-NO12-RENOLD
Renold Blue Box 40-3-NO12 ANSI / AS Triplex Chain Single Cranked Cottered Link 1/2 inch Pitch
- Regular price
- €30,79 ex VAT
- Sale price
- €30,79
- Regular price
-
Not in stock
Quantity Price Breaks
2
€27,40
5
€25,86
10
€25,56
29
€25,25
49
€24,94
75
€24,63
100
€23,09
200
€22,78
250
€22,48
500
€22,17
1000
€21,55
SKU:
40-3-BB-NO12-RENOLD
Renold Blue Box 40-3-NO12 ANSI / AS Triplex Chain Single Cranked Cottered Link 1/2 inch Pitch
- Regular price
- €30,79 ex VAT
- Sale price
- €30,79
- Regular price
-
Description

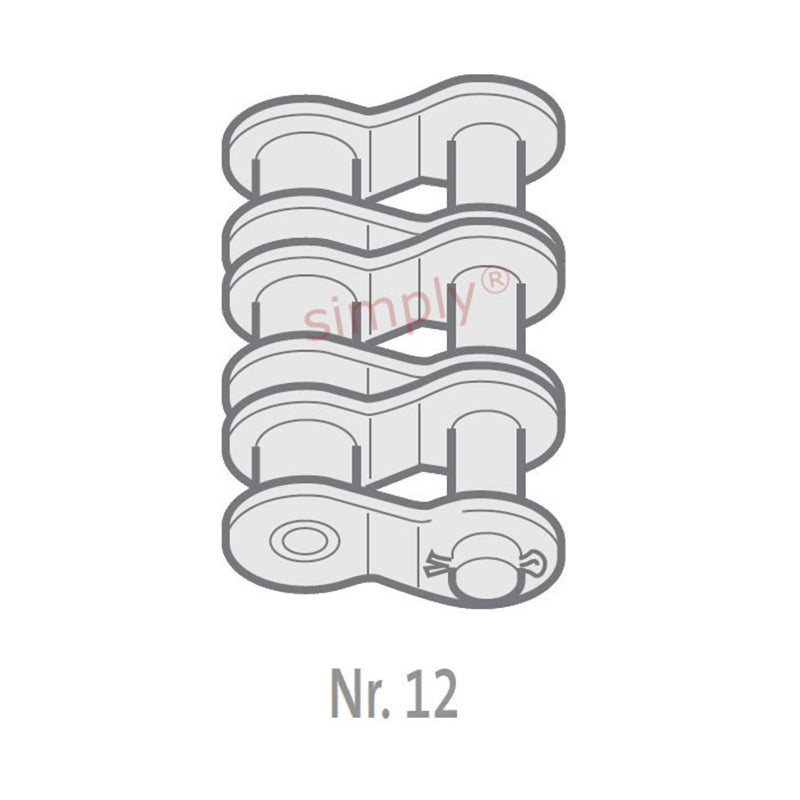

| Renold No. 12 ANSI Triplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
Technical
| Pitch (A) | = | 0.5 inch |
| Pitch (A) | = | 12.7mm |
| Inside Width min (B) | = | 7.85mm |
| Roller Diameter max (C) | = | 7.92mm |
| Plate Height max (D) | = | 11.2mm |
| Plate Width Inner max (E) | = | 1.55mm |
| Plate Width Outer max (F) | = | 1.55mm |
| Pin Diameter max (G) | = | 3.96mm |
| Pin Length max (H2) | = | 45.1mm |
| Connecting Link Extension max (J) | = | 2.1mm |
| Transverse Pitch nom (K) | = | 14.38mm |
| ISO606 Tensile Strength min | = | 41700 N |
| Weight | = | 0.03kg/m |
