SKU: 40-2-BB-NO30-RENOLD

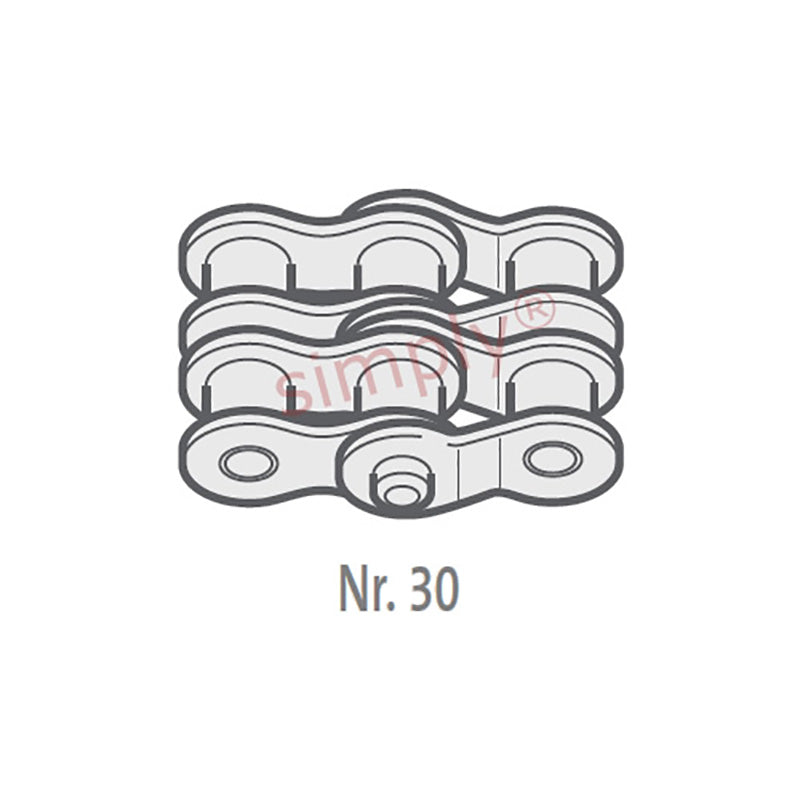

Renold Blue Box 40-2-NO30 ANSI / AS Duplex Chain Double Cranked Link 1/2 inch Pitch
- Regular price
- €20,75 ex VAT
- Sale price
- €20,75
- Regular price
-
Not in stock
Quantity Price Breaks
2
€18,47
5
€17,43
10
€17,22
29
€17,02
49
€16,81
75
€16,60
100
€15,56
200
€15,36
250
€15,15
500
€14,94
1000
€14,53
SKU:
40-2-BB-NO30-RENOLD
Renold Blue Box 40-2-NO30 ANSI / AS Duplex Chain Double Cranked Link 1/2 inch Pitch
- Regular price
- €20,75 ex VAT
- Sale price
- €20,75
- Regular price
-
Technical
| Pitch (A) | = | 0.5 inch |
| Pitch (A) | = | 12.7mm |
| Inside Width min (B) | = | 7.85mm |
| Roller Diameter max (C) | = | 7.92mm |
| Plate Height max (D) | = | 11.2mm |
| Plate Width Inner max (E) | = | 1.55mm |
| Plate Width Outer max (F) | = | 1.55mm |
| Pin Diameter max (G) | = | 3.96mm |
| Pin Length max (H2) | = | 30.8mm |
| Connecting Link Extension max (J) | = | 2.1mm |
| Transverse Pitch nom (K) | = | 14.38mm |
| ISO606 Tensile Strength min | = | 27800 N |
| Weight | = | 0.02kg/m |
