SKU: 40-1-BB-NO12-RENOLD
Renold Blue Box 40-1-NO12 ANSI / AS Simplex Chain Single Cranked Cottered Link 1/2 inch Pitch
- Regular price
- €12,64 ex VAT
- Sale price
- €12,64
- Regular price
-
In stock
Quantity Price Breaks
2
€11,25
5
€10,62
10
€10,49
29
€10,36
49
€10,24
75
€10,11
100
€9,48
200
€9,35
250
€9,23
500
€9,10
1000
€8,85
SKU:
40-1-BB-NO12-RENOLD
Renold Blue Box 40-1-NO12 ANSI / AS Simplex Chain Single Cranked Cottered Link 1/2 inch Pitch
- Regular price
- €12,64 ex VAT
- Sale price
- €12,64
- Regular price
-
Description

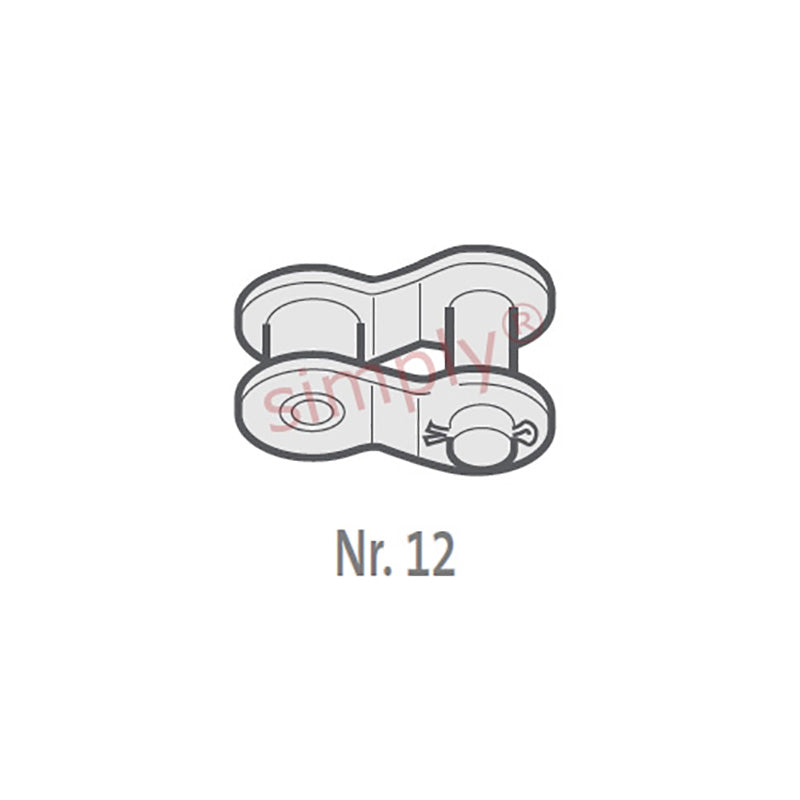

| Renold No. 12 ANSI Simplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
Technical
| Pitch (A) | = | 0.5 inch |
| Pitch (A) | = | 12.7mm |
| Inside Width min (B) | = | 6.35mm |
| Roller Diameter max (C) | = | 7.77mm |
| Plate Height max (D) | = | 9.91mm |
| Plate Width Inner max (E) | = | 1.3mm |
| Plate Width Outer max (F) | = | 1.3mm |
| Pin Diameter max (G) | = | 3.96mm |
| Pin Length max (H2) | = | 14.5mm |
| Connecting Link Extension max (J) | = | 2.1mm |
| ISO606 Tensile Strength min | = | 6700 N |
| Weight | = | 0.01kg/m |
