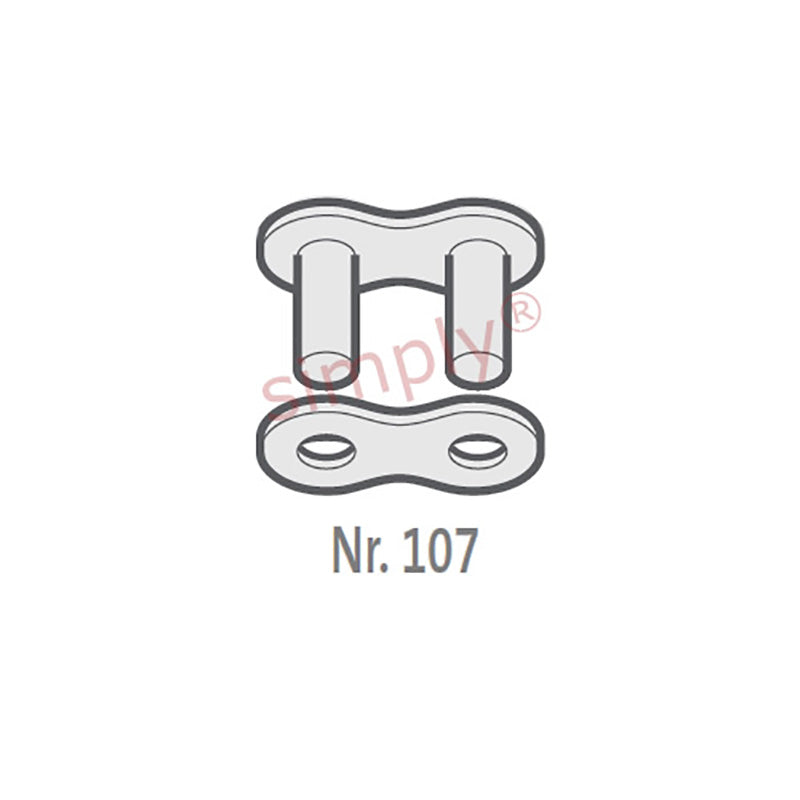

• Renold Blue Box 40-1-NO107 ANSI / AS Simplex Chain Outer Link To Be Riveted 1/2 inch Pitch
1 1

SKU: 40-1-BB-NO107-RENOLD

Renold Blue Box 40-1-NO107 ANSI / AS Simplex Chain Outer Link To Be Riveted 1/2 inch Pitch

Renold Blue Box 40-1-NO107 ANSI / AS Simplex Chain Outer Link To Be Riveted 1/2 inch Pitch
€7,09 ex VAT
€7,09 ex VAT
Sale Sold out

In stock

Price Break
2+ €5,39
5+ €5,08
10+ €5,02
29+ €4,96
49+ €4,90
75+ €4,84
100+ €4,54
200+ €4,48
250+ €4,42
500+ €4,36
1000+ €4,24

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
ANSI_NO107S_DESC
Brand / Quality:
Renold - High Quality
Pitch:
12.7mm = 0.5 (1/2) inch
Technical
Pitch (A) 0.5 inch
Pitch (A) 12.7mm
Inside Width min (B) 6.35mm
Roller Diameter max (C) 7.77mm
Plate Height max (D) 9.91mm
Plate Width Inner max (E) 1.3mm
Plate Width Outer max (F) 1.3mm
Pin Diameter max (G) 3.96mm
Pin Length max (H2) 14.5mm
Connecting Link Extension max (J) 2.1mm
ISO606 Tensile Strength min 6700 N
Weight 0.01kg/m
