3V1250 Major Brand Narrow Profile V-Belt

SKU: 3V1250.VBELT.MB

3V1250 Major Brand Narrow Profile V-Belt

€28,77 ex VAT
€28,77
ex VAT
Not in stock

Quantity Price Breaks

10 €25,61
19 €24,17
29 €23,88
39 €23,59
49 €23,30
74 €23,02
99 €21,58
199 €21,29
249 €21,00
499 €20,71
999 €20,14
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
3V1250 Major Brand Narrow Profile V-Belt
SKU: 3V1250.VBELT.MB

3V1250 Major Brand Narrow Profile V-Belt

€28,77 ex VAT
€28,77
ex VAT

Description

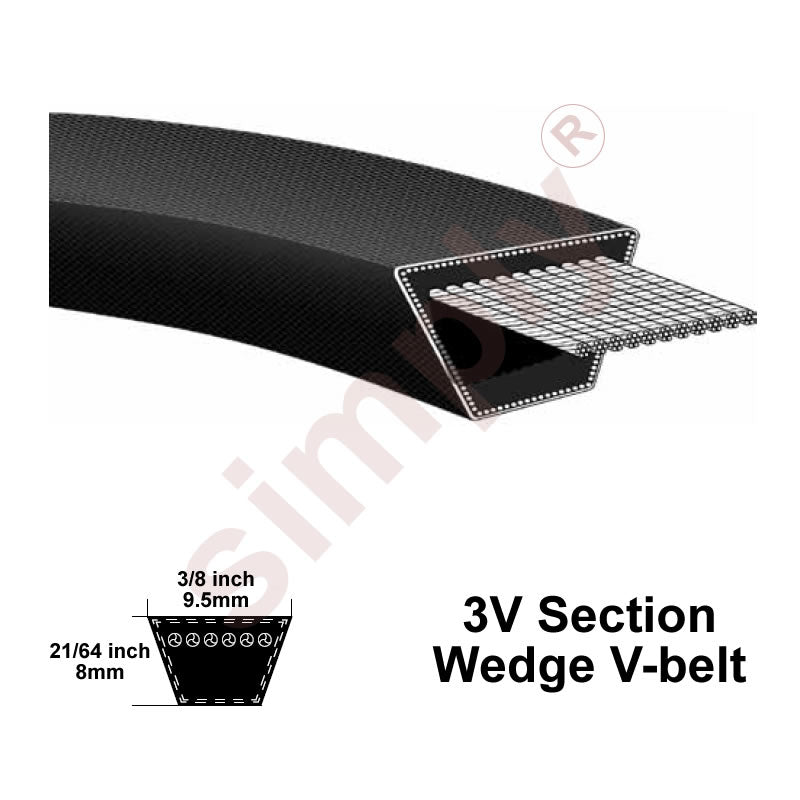

3V Wedge Type Cogged V belts: Narrow profile envelope construction v belts for compact, high power drives and high shock loading on short centers and small diameters. Ideal for drive designs that need to be kept compact or heavy-duty drives where space limitation is a factor.
Benefits: Oil, ozone and abrasion resistant, Temperature resistance: -20deg C to +70deg C, Static conductive to ISO 1813
Note: Matched Pairs: All V Belts conform to DIN 2215 (For Classic V Belts Z, A, B, C, D, etc) and DIN 7753 (For Wedge Type Belts SPZ, SPA, SPB etc) and ISO 4184 and as such will match taking into account dimensional tolerances. If you require belts from the same batch, please contact our Sales Support Team who will gladly assist you further.

Technical

Inside Length = 3133mm = 123.35 inch
Outside Length = 3175mm = 125 inch
Datum Length = 125 inch nominal
