SKU: 399D/394AS-TIM

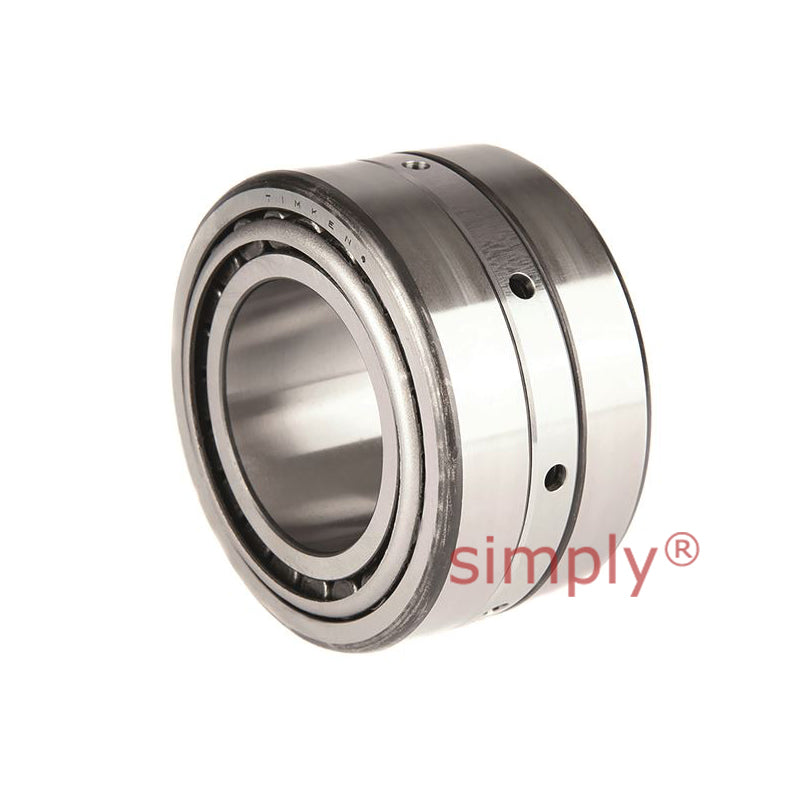

Timken 399D/394AS TDI Double Inner Race Taper Roller Bearing 2.4375x4.3307x2.187x2.187 inch
- Regular price
- €511,46 ex VAT
- Sale price
- €511,46
- Regular price
-
In stock
Quantity Price Breaks
10+
€455,20
19+
€429,63
29+
€424,51
39+
€419,40
49+
€414,28
74+
€409,17
99+
€383,60
199+
€378,48
249+
€373,37
499+
€368,25
999+
€358,02
SKU:
399D/394AS-TIM
Timken 399D/394AS TDI Double Inner Race Taper Roller Bearing 2.4375x4.3307x2.187x2.187 inch
- Regular price
- €511,46 ex VAT
- Sale price
- €511,46
- Regular price
-
Description

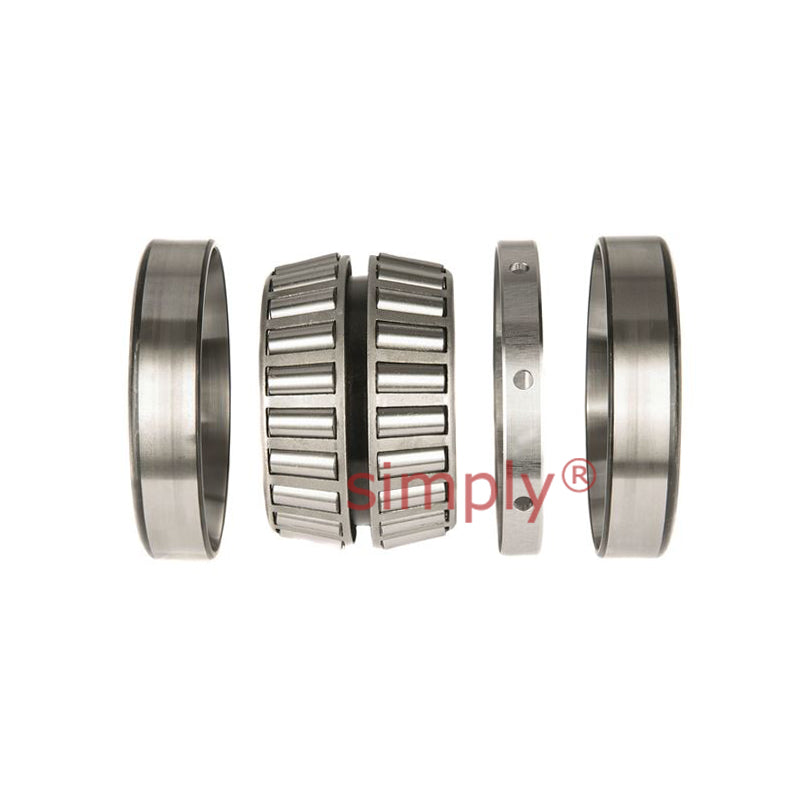

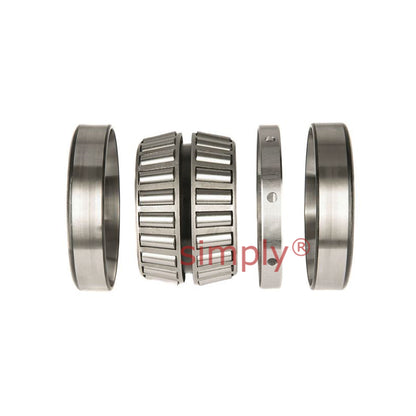

Timken Taper Roller Bearings: These bearings have a double tapered inner raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
Technical

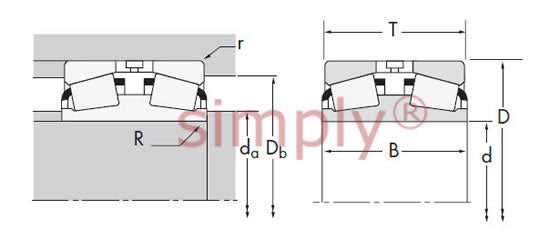

| d | = | 61.912mm = 2.4375 inch |
| D | = | 110mm = 4.3307 inch |
| T | = | 55.55mm = 2.187 inch |
| C | = | 55.55mm = 2.187 inch |
| Dynamic (1) C1 | = | 159000N |
| Factors (5) e | = | 0.4 |
| Factors (5) Y1 | = | 1.68 |
| Factors (5) Y2 | = | 2.5 |
| Dynamic (2) C90 | = | 23700N |
| Dynamic (2) Ca90 | = | 16300N |
| Dynamic (2) C90(2) | = | 41300N |
| Factors (5) K | = | 1.45 |
| Shaft max shaft fillet radius R (3) | = | 0.8mm = 0.03 inch |
| Shaft backing shoulder diameter da | = | 70mm = 2.76 inch |
| Housing max shaft fillet radius r (3) | = | 3.3mm = 0.13 inch |
| Housing backing shoulder diameter Db | = | 99mm = 3.9 inch |
| G1 | = | 56 |
| G2 | = | 21.4 |
| Cg | = | 0.0984 |
