SKU: 35-3-BB-NO30-RENOLD
Renold Blue Box 35-3-NO30 ANSI / AS Triplex Chain Double Cranked Link 3/8 inch Pitch
- Regular price
- €28,23 ex VAT
- Sale price
- €28,23
- Regular price
-
Not in stock
Quantity Price Breaks
2
€25,12
5
€23,71
10
€23,43
29
€23,15
49
€22,87
75
€22,58
100
€21,17
200
€20,89
250
€20,61
500
€20,33
1000
€19,76
SKU:
35-3-BB-NO30-RENOLD
Renold Blue Box 35-3-NO30 ANSI / AS Triplex Chain Double Cranked Link 3/8 inch Pitch
- Regular price
- €28,23 ex VAT
- Sale price
- €28,23
- Regular price
-
Description

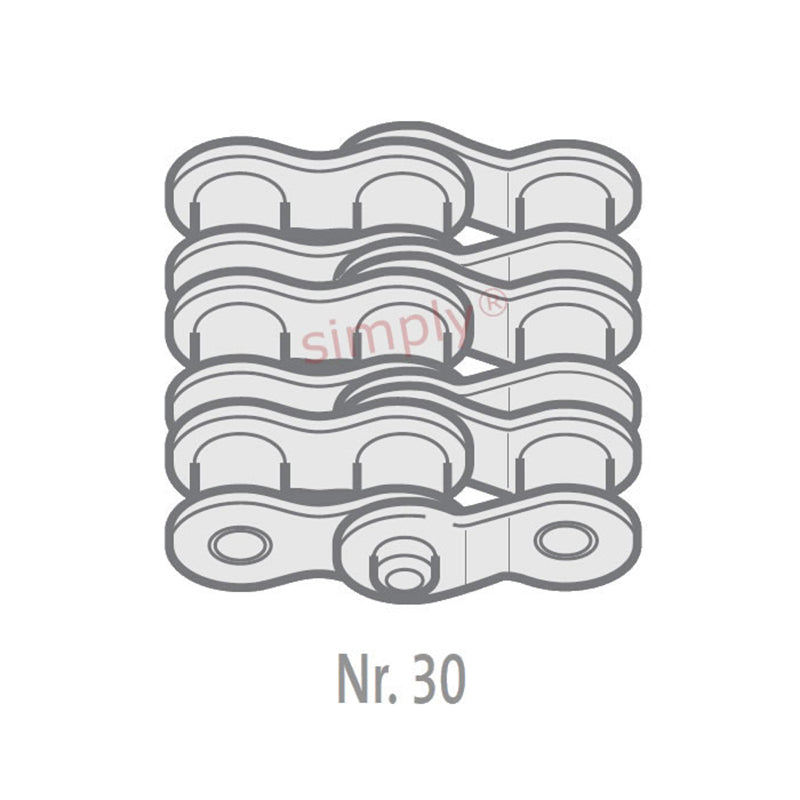

| Renold No. 30 ANSI Triplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin. |
Technical
| Pitch (A) | = | 0.375 inch |
| Pitch (A) | = | 9.525mm |
| Inside Width min (B) | = | 4.68mm |
| Roller Diameter max (C) | = | 5.08mm |
| Plate Height max (D) | = | 8.6mm |
| Plate Width Inner max (E) | = | 1.29mm |
| Plate Width Outer max (F) | = | 1.29mm |
| Pin Diameter max (G) | = | 3.59mm |
| Pin Length max (H2) | = | 32.2mm |
| Connecting Link Extension max (J) | = | 1.7mm |
| Transverse Pitch nom (K) | = | 10.13mm |
| ISO606 Tensile Strength min | = | 23700 N |
| Weight | = | 1.8kg/m |
