SKU: 35-1-SYN-NO12-RENOLD
Renold Synergy 35-1-NO12 ANSI / AS Simplex Chain Single Cranked Cottered Link 3/8 inch Pitch
- Regular price
- €25,50 ex VAT
- Sale price
- €25,50
- Regular price
-
Not in stock
Quantity Price Breaks
2
€22,70
5
€21,42
10
€21,17
29
€20,91
49
€20,66
75
€20,40
100
€19,13
200
€18,87
250
€18,62
500
€18,36
1000
€17,85
SKU:
35-1-SYN-NO12-RENOLD
Renold Synergy 35-1-NO12 ANSI / AS Simplex Chain Single Cranked Cottered Link 3/8 inch Pitch
- Regular price
- €25,50 ex VAT
- Sale price
- €25,50
- Regular price
-
Description

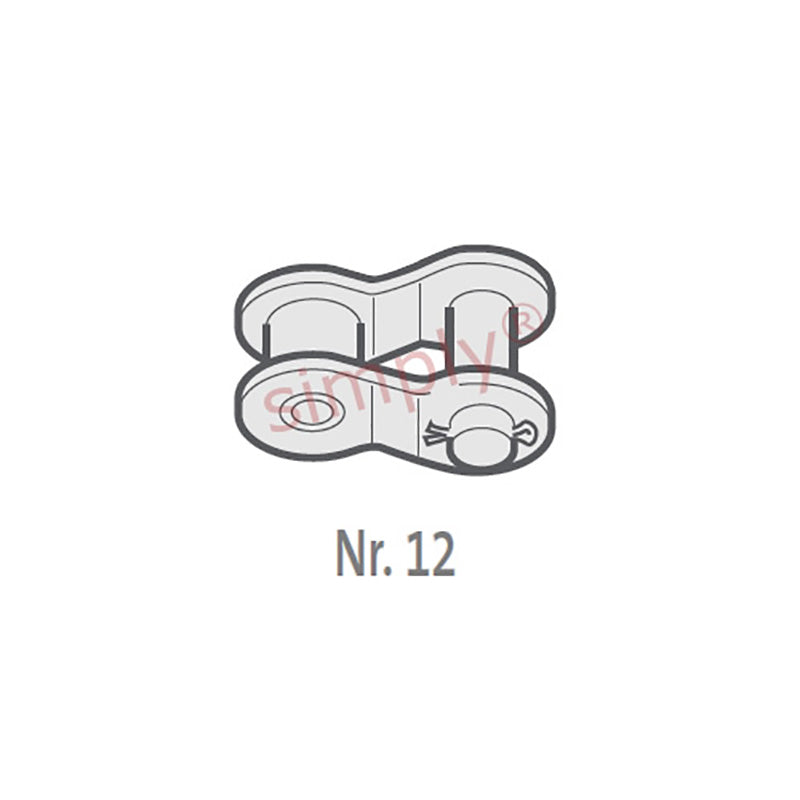

| Renold No. 12 ANSI Simplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
Technical
| Pitch (A) | = | 0.375 inch |
| Pitch (A) | = | 9.525mm |
| Inside Width min (B) | = | 4.68mm |
| Roller Diameter max (C) | = | 5.08mm |
| Plate Height max (D) | = | 8.6mm |
| Plate Width Inner max (E) | = | 1.29mm |
| Plate Width Outer max (F) | = | 1.29mm |
| Pin Diameter max (G) | = | 3.59mm |
| Pin Length max (H1) | = | 12mm |
| Connecting Link Extension max (J) | = | 1.7mm |
| ISO606 Tensile Strength min | = | 7900 N |
| Weight | = | 0.008kg/m |
