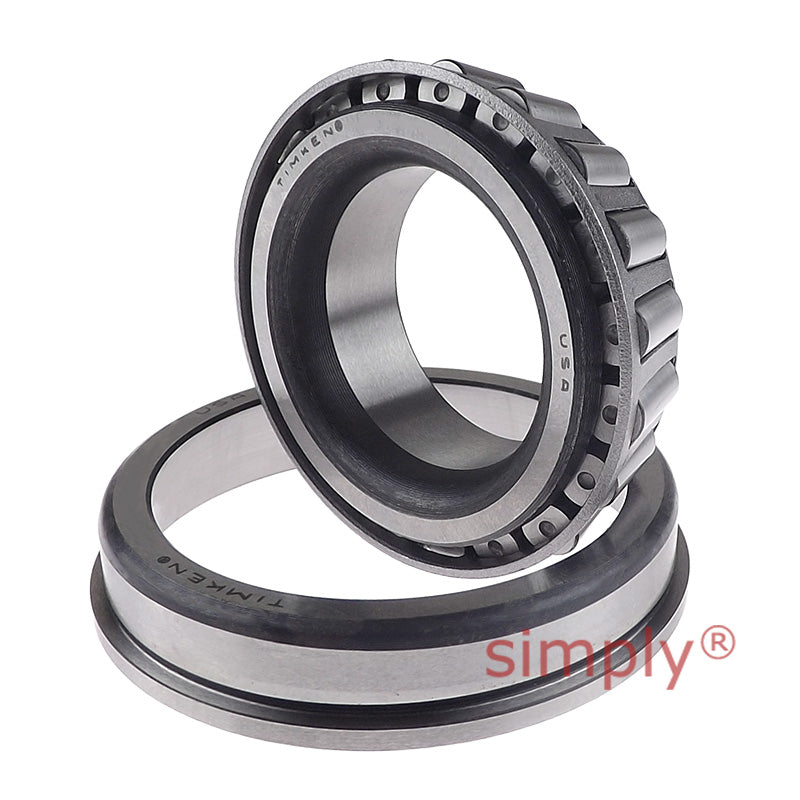

• Timken 3386/3320B TSF Single-Row Taper Roller Bearing 1.5625x3.1562x1.1563 inch
1 1

SKU: 3386/3320B-TIM

Timken 3386/3320B TSF Single-Row Taper Roller Bearing 1.5625x3.1562x1.1563 inch

Timken 3386/3320B TSF Single-Row Taper Roller Bearing 1.5625x3.1562x1.1563 inch
€182,29 ex VAT
€182,29 ex VAT
Sale Sold out

In stock

Price Break
10+ €138,53
20+ €130,74
30+ €129,19
40+ €127,63
50+ €126,07
75+ €124,52
100+ €116,74
200+ €115,18
250+ €113,62
500+ €112,07
1000+ €108,95

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
JL_TAPER_DESC
Brand / Quality:
Timken - High Quality
Inside Diameter:
39.69mm = 1.563 (1-9/16) inch
Outside Diameter:
80.17mm = 3.156 (3-5/32) inch
Width:
29.37mm = 1.156 (1-5/32) inch
Technical
d 39.688mm = 1.5625 inch
D 80.167mm = 3.1562 inch
T1 10.32mm = 0.4063 inch
Dynamic (1) C1 106000N
Factors (5) e 0.27
Factors (5) Y 2.2
Dynamic (2) C90 27600N
Dynamic (2) Ca90 12900N
Factors (5) K 2.14
Static Co 129000N
Bearing B 30.391mm = 1.1965 inch
Bearing C 23.812mm = 0.9375 inch
Bearing a(3) -10.9mm = -0.43 inch
Bearing D1 84.826mm = 3.3396 inch
Bearing C2 4.762mm = 0.1875 inch
Shaft max shaft fillet radius R(4) 0.8mm = 0.03 inch
Shaft backing shoulder diameter da 45.5mm = 1.79 inch
Shaft backing shoulder diameter db 46.5mm = 1.83 inch
Housing backing shoulder diameter Da 77mm = 3.03 inch
G1 34.6
G2 12.1
Cg 0.0744
