SKU: 3307-2Z-EU

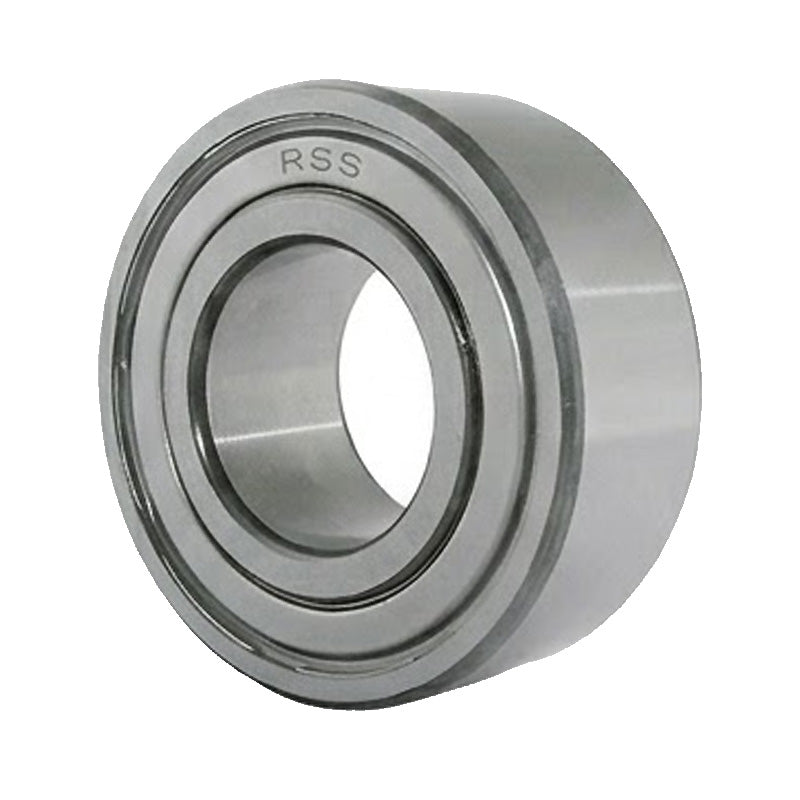

33072Z Budget Shielded Double Row Angular Contact Ball Bearing 35x80x34.9mm
- Regular price
- €42,30 ex VAT
- Sale price
- €42,30
- Regular price
-
ex VAT
In stock
Quantity Price Breaks
10
€37,65
19
€35,53
29
€35,11
39
€34,69
49
€34,26
74
€33,84
99
€31,73
199
€31,30
249
€30,88
499
€30,46
999
€29,61
Description
DRACZ1_DESC
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
Technical
| d | = | 35mm |
| D | = | 80mm |
| B | = | 34.9mm |
| Dynamic load C | = | 52 kN |
| Static load Co | = | 35.5 kN |
| Fatigue load limit Pu | = | 1.5 kN |
| Reference speed | = | 8500 rpm |
| Weight | = | 0.73 kg |
| d1 | = | 44.6mm |
| D1 | = | 70.5mm |
| r1r2 min | = | 1.5mm |
| a | = | 47mm |
| da min | = | 44mm |
| da max | = | 44.5mm |
| Da max | = | 71mm |
| ra max | = | 1.5mm |
