SKU: 3303-2Z-EU

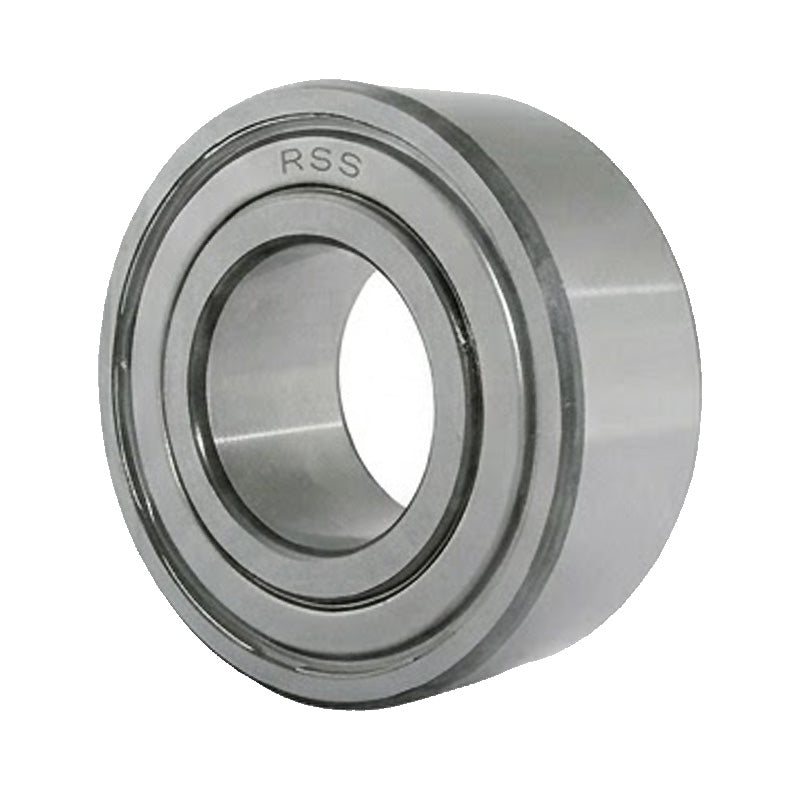

33032Z Budget Shielded Double Row Angular Contact Ball Bearing 17x47x22.2mm
- Regular price
- €23,49 ex VAT
- Sale price
- €23,49
- Regular price
-
In stock
Quantity Price Breaks
10
€20,91
19
€19,73
29
€19,50
39
€19,26
49
€19,03
74
€18,79
99
€17,62
199
€17,38
249
€17,15
499
€16,91
999
€16,44
SKU:
3303-2Z-EU
33032Z Budget Shielded Double Row Angular Contact Ball Bearing 17x47x22.2mm
- Regular price
- €23,49 ex VAT
- Sale price
- €23,49
- Regular price
-
Description
DRACZ1_DESC
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
Technical
| d | = | 17mm |
| D | = | 47mm |
| B | = | 22.2mm |
| Dynamic load C | = | 21.6 kN |
| Static load Co | = | 12.7 kN |
| Fatigue load limit Pu | = | 0.54 kN |
| Reference speed | = | 14000 rpm |
| Weight | = | 0.18 kg |
| d1 | = | 25.7mm |
| D1 | = | 40.2mm |
| r1r2 min | = | 1mm |
| a | = | 28mm |
| da min | = | 22.6mm |
| da max | = | 25.5mm |
| Da max | = | 41.4mm |
| ra max | = | 1mm |
