SKU: 3213-2Z-EU

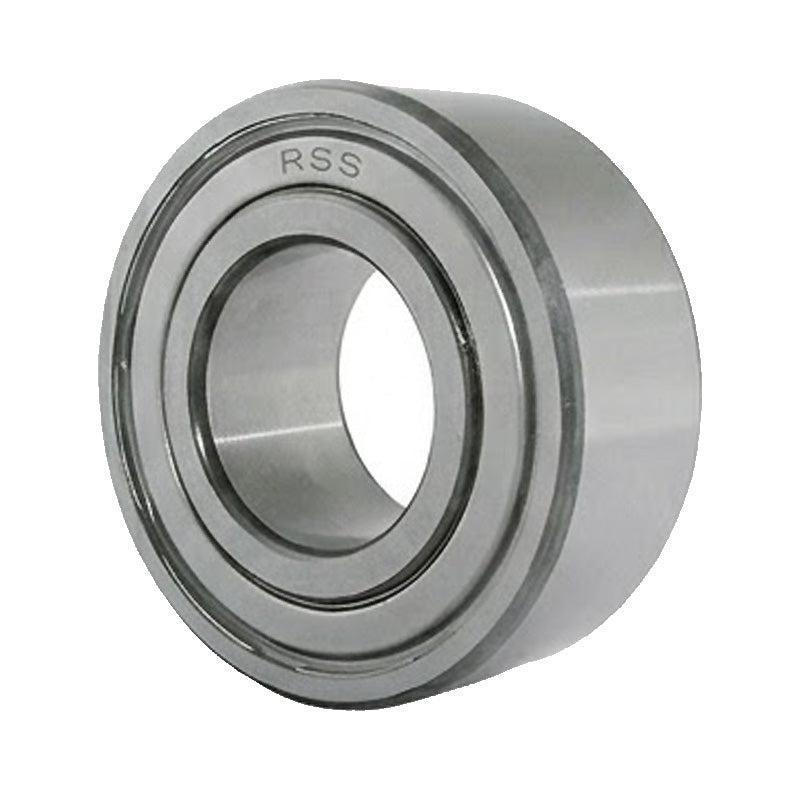

32132Z Budget Shielded Double Row Angular Contact Ball Bearing 65x120x38.1mm
- Regular price
- €93,99 ex VAT
- Sale price
- €93,99
- Regular price
-
In stock
Quantity Price Breaks
10
€83,65
19
€78,95
29
€78,01
39
€77,07
49
€76,13
74
€75,19
99
€70,49
199
€69,55
249
€68,61
499
€67,67
999
€65,79
SKU:
3213-2Z-EU
32132Z Budget Shielded Double Row Angular Contact Ball Bearing 65x120x38.1mm
- Regular price
- €93,99 ex VAT
- Sale price
- €93,99
- Regular price
-
Description
DRACZ1_DESC
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
Technical
| d | = | 65mm |
| D | = | 120mm |
| B | = | 38.1mm |
| Dynamic load C | = | 80.6 kN |
| Static load Co | = | 73.5 kN |
| Fatigue load limit Pu | = | 3.1 kN |
| Reference speed | = | 4800 rpm |
| Weight | = | 1.75 kg |
| d1 | = | 76.3mm |
| D1 | = | 113mm |
| r1r2 min | = | 1.5mm |
| a | = | 71mm |
| da min | = | 74mm |
| da max | = | 76mm |
| Da max | = | 111mm |
| ra max | = | 1.5mm |
