SKU: 3209-2Z-EU

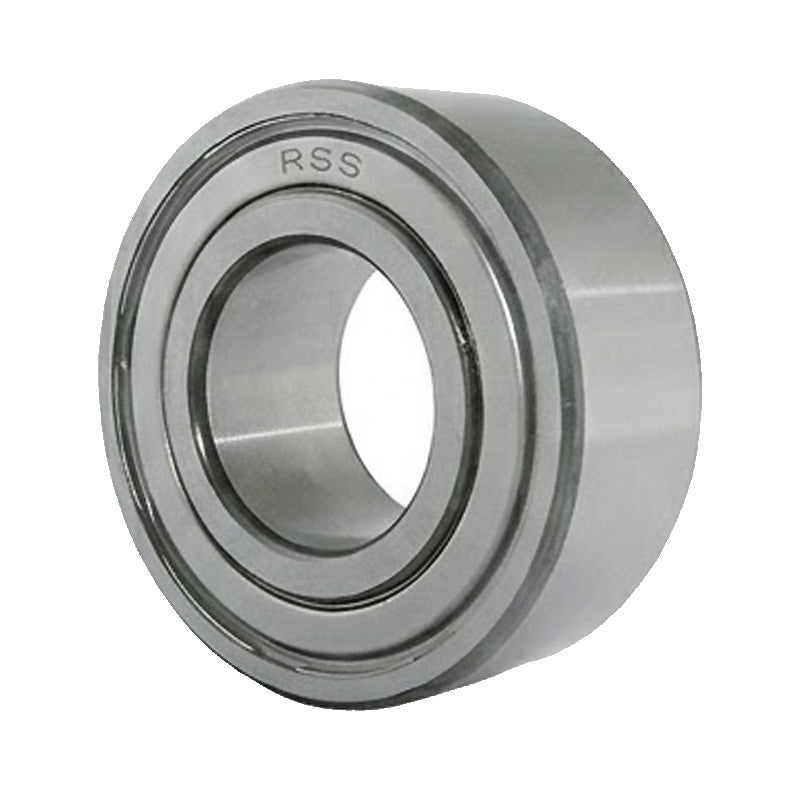

32092Z Budget Shielded Double Row Angular Contact Ball Bearing 45x85x30.2mm
- Regular price
- €41,04 ex VAT
- Sale price
- €41,04
- Regular price
-
Not in stock
Quantity Price Breaks
10
€36,53
19
€34,47
29
€34,06
39
€33,65
49
€33,24
74
€32,83
99
€30,78
199
€30,37
249
€29,96
499
€29,55
999
€28,73
SKU:
3209-2Z-EU
32092Z Budget Shielded Double Row Angular Contact Ball Bearing 45x85x30.2mm
- Regular price
- €41,04 ex VAT
- Sale price
- €41,04
- Regular price
-
Description
DRACZ1_DESC
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
Technical
| d | = | 45mm |
| D | = | 85mm |
| B | = | 30.2mm |
| Dynamic load C | = | 51 kN |
| Static load Co | = | 39 kN |
| Fatigue load limit Pu | = | 1.63 kN |
| Reference speed | = | 7500 rpm |
| Weight | = | 0.63 kg |
| d1 | = | 52.8mm |
| D1 | = | 77.1mm |
| r1r2 min | = | 1.1mm |
| a | = | 49mm |
| da min | = | 52mm |
| da max | = | 52.5mm |
| Da max | = | 78mm |
| ra max | = | 1mm |
