SKU: 3204-2Z-EU

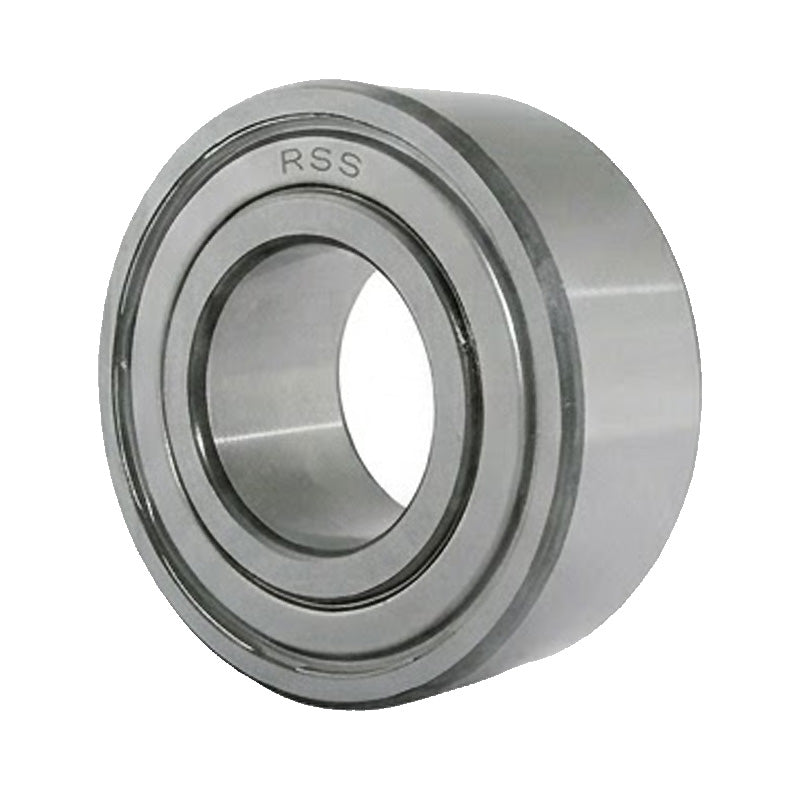

32042Z Budget Shielded Double Row Angular Contact Ball Bearing 20x47x20.6mm
- Regular price
- €18,75 ex VAT
- Sale price
- €18,75
- Regular price
-
In stock
Quantity Price Breaks
10
€16,69
19
€15,75
29
€15,56
39
€15,38
49
€15,19
74
€15,00
99
€14,06
199
€13,88
249
€13,69
499
€13,50
999
€13,13
SKU:
3204-2Z-EU
32042Z Budget Shielded Double Row Angular Contact Ball Bearing 20x47x20.6mm
- Regular price
- €18,75 ex VAT
- Sale price
- €18,75
- Regular price
-
Description
DRACZ1_DESC
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
Technical
| d | = | 20mm |
| D | = | 47mm |
| B | = | 20.6mm |
| Dynamic load C | = | 20 kN |
| Static load Co | = | 12 kN |
| Fatigue load limit Pu | = | 0.51 kN |
| Reference speed | = | 14000 rpm |
| Weight | = | 0.16 kg |
| d1 | = | 27.7mm |
| D1 | = | 40.9mm |
| r1r2 min | = | 1mm |
| a | = | 28mm |
| da min | = | 25.6mm |
| da max | = | 27.5mm |
| Da max | = | 41.4mm |
| ra max | = | 1mm |
