SKU: 3203-2Z-EU

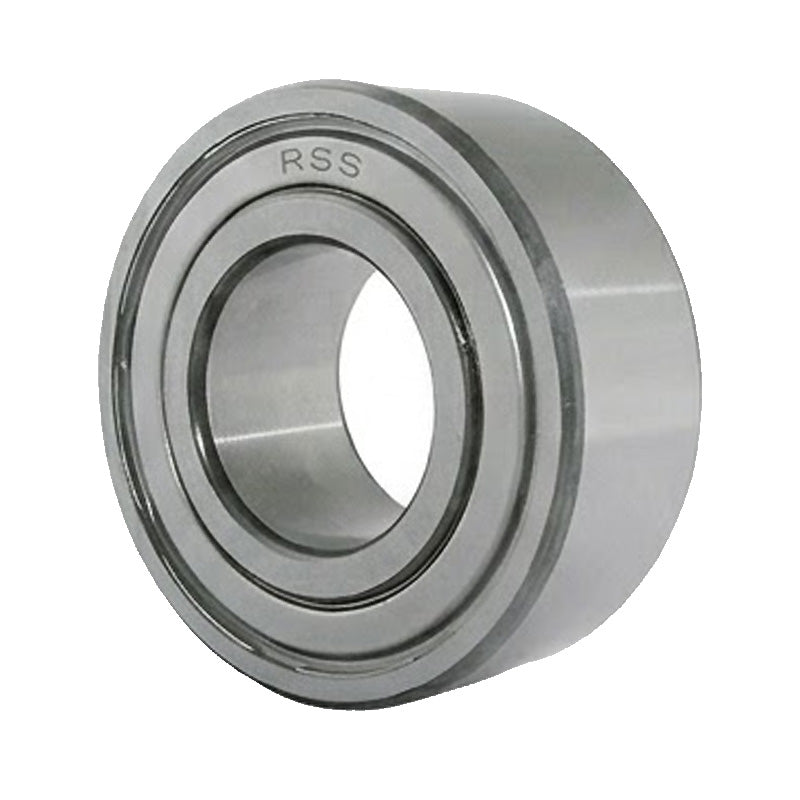

32032Z Budget Shielded Double Row Angular Contact Ball Bearing 17x40x17.5mm
- Regular price
- €17,63 ex VAT
- Sale price
- €17,63
- Regular price
-
In stock
Quantity Price Breaks
10
€15,69
19
€14,81
29
€14,63
39
€14,46
49
€14,28
74
€14,10
99
€13,22
199
€13,05
249
€12,87
499
€12,69
999
€12,34
SKU:
3203-2Z-EU
32032Z Budget Shielded Double Row Angular Contact Ball Bearing 17x40x17.5mm
- Regular price
- €17,63 ex VAT
- Sale price
- €17,63
- Regular price
-
Description
DRACZ1_DESC
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
Technical
| d | = | 17mm |
| D | = | 40mm |
| B | = | 17.5mm |
| Dynamic load C | = | 14.3 kN |
| Static load Co | = | 8.8 kN |
| Fatigue load limit Pu | = | 0.365 kN |
| Reference speed | = | 16000 rpm |
| Weight | = | 0.1 kg |
| d1 | = | 23.3mm |
| D1 | = | 35mm |
| r1r2 min | = | 0.6mm |
| a | = | 23mm |
| da min | = | 21.4mm |
| da max | = | 23mm |
| Da max | = | 35.6mm |
| ra max | = | 0.6mm |
