SKU: 3201-2RS-EU

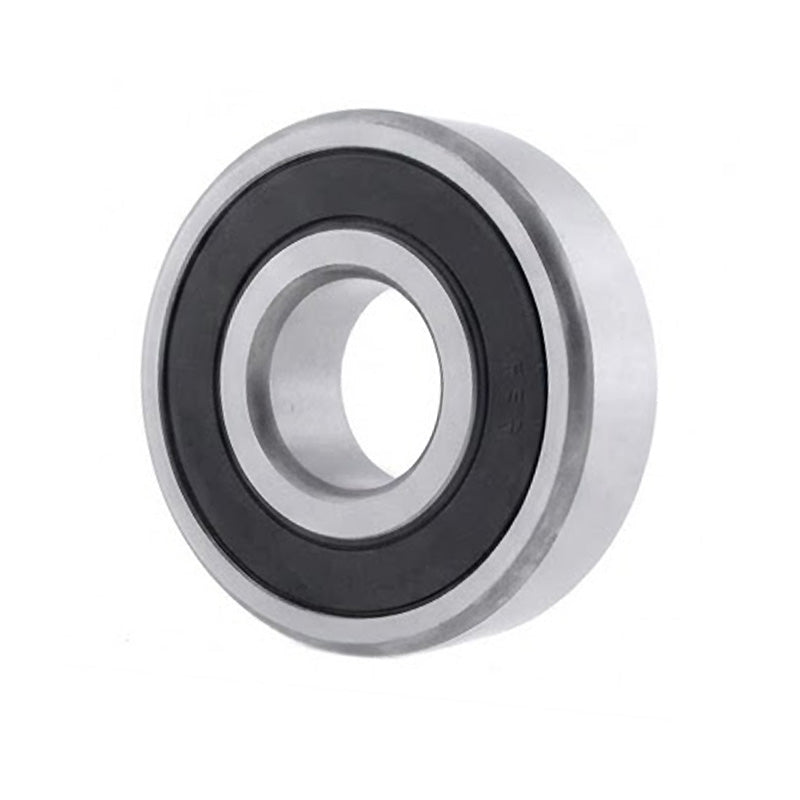

32012RS Budget Rubber Sealed Double Row Angular Contact Ball Bearing 12x32x15.9mm
- Regular price
- €18,99 ex VAT
- Sale price
- €18,99
- Regular price
-
In stock
Quantity Price Breaks
10
€16,90
19
€15,95
29
€15,76
39
€15,57
49
€15,38
74
€15,19
99
€14,24
199
€14,05
249
€13,86
499
€13,67
999
€13,29
SKU:
3201-2RS-EU
32012RS Budget Rubber Sealed Double Row Angular Contact Ball Bearing 12x32x15.9mm
- Regular price
- €18,99 ex VAT
- Sale price
- €18,99
- Regular price
-
Description
DRACS1_DESC
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
Technical
| d | = | 12mm |
| D | = | 32mm |
| B | = | 15.9mm |
| Dynamic load C | = | 10.1 kN |
| Static load Co | = | 5.6 kN |
| Fatigue load limit Pu | = | 0.24 kN |
| Reference speed | = | 15000 rpm |
| Weight | = | 0.058 kg |
| d1 | = | 17.2mm |
| D1 | = | 27.7mm |
| r1r2 min | = | 0.6mm |
| a | = | 19mm |
| da min | = | 16.4mm |
| da max | = | 17mm |
| Da max | = | 27.7mm |
| ra max | = | 0.6mm |
