SKU: 305802.2Z.MB

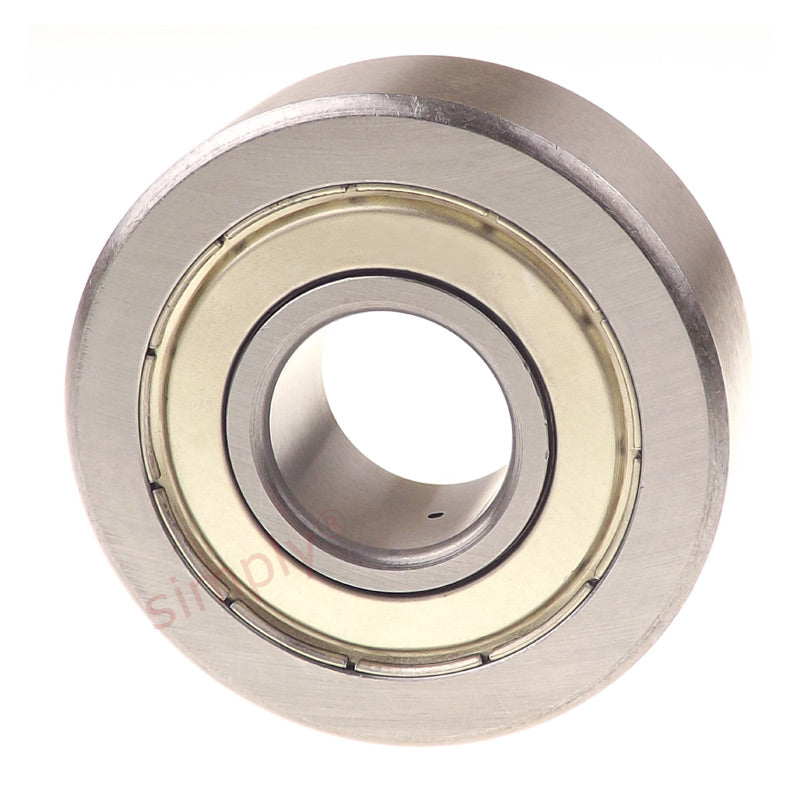

3058022Z Double Row Metal Shielded Cam Roller Cylindrical Outer 15x40x15.9mm
- Regular price
- €70,03 ex VAT
- Sale price
- €70,03
- Regular price
-
Quantity Price Breaks
3058022Z Double Row Metal Shielded Cam Roller Cylindrical Outer 15x40x15.9mm
- Regular price
- €70,03 ex VAT
- Sale price
- €70,03
- Regular price
-
Description
|
Cam Rollers: Are special variants of deep groove ball bearings which have thicker outer races to allow for running in tracks as rollers where misalignment and shock loads may be present. They have the same characteristics as normal deep groove ball bearings, generally have seals although some unsealed versions are available and can also be used in place of standard bearings. They are available with parallel outside diameter or crowned (spherical) for applications where greater misalignment needs to be catered for. |
Technical
| Bore | = | 15mm |
| Outside Diameter | = | 40mm |
| Width | = | 15.9mm |
| Max rad R | = | 400mm |
| r1r2 | = | 0.6mm |
| Limiting speed | = | 10000 rpm |
| Dynamic load as cam roller | = | 11.9 kN |
| Static load as cam roller | = | 7.1 kN |
| Dynamic load as bearing | = | 11.1 kN |
| Static load as bearing | = | 6.4 kN |
| Max radial load | = | 12.2 kN |
| Max static load | = | 17.6 kN |
| Weight | = | 0.1 kg |
